ProfiLux Basic LED L RGB Spot /DMX/02
SKU: 70132
View other products in the family
The ProfiLux Basic LED L RGB Spot /DMX/02 is a powerful RGB light with a robust holder and a beam angle of 11°, 573 lumens.
The LED Basic light comes with high quality stainless steel housing and holder for fresh- and pool water. These lights have a temperature regulation and overheating protection so that wet and dry installation is possible. They have a lifetime up to 50.000 hours (In case of underwater application, an intelligent heat management and quality LED enables a lifetime of up to 50.000 hrs.. This claim does not entitle to a guarantee).The brightness of the colours of the LED RGB lights are measuredindividually.Our OASE Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.
* In case of underwater application, an intelligent heat management and quality LED enables a lifetime of up to 50,000 hrs. This claim does not entitle to a guarantee.
The LED Basic light comes with high quality stainless steel housing and holder for fresh- and pool water. These lights have a temperature regulation and overheating protection so that wet and dry installation is possible. They have a lifetime up to 50.000 hours (In case of underwater application, an intelligent heat management and quality LED enables a lifetime of up to 50.000 hrs.. This claim does not entitle to a guarantee).The brightness of the colours of the LED RGB lights are measuredindividually.Our OASE Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.
* In case of underwater application, an intelligent heat management and quality LED enables a lifetime of up to 50,000 hrs. This claim does not entitle to a guarantee.
Podrobnosti o funkcích
1 m cable length with patented waterproof OASE ProNect connector
High-quality stainless steel housing with robust bracket and fine adjustment
Energy-efficient RGB LED spotlight for wet and dry installation with homogeneous coloured illumination by uniformly calibrated LEDs
Temperature-controlled, high-quality brand LEDs with a lifespan of up to 50,000 hours*
Waterproof according to IP68 up to 2 m water depth

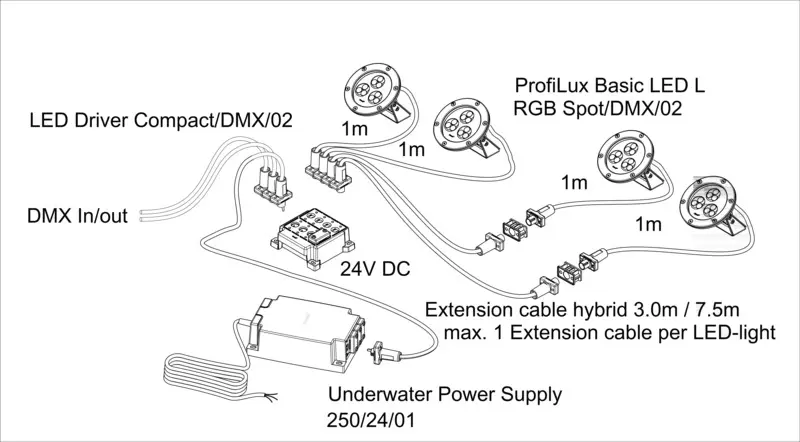

DMX/RDM-capable with the Underwater LED-Driver Compact/DMX/02, dimmable, perfect for strobe effects
Galvanic isolation between DMX and 24 V DC
Slide 1 of 5
1 of 5
Slide 1 of 6
1 of 6
Specifikace
Specification breakdown
- Certificate
- MET US + C
- Number of DMX channels
- 5
- Units
- DMX Channel 1
- red
- Beam angle
- 11 Degrees (± 2)
- DMX Channel 2
- green
- Rated voltage
- 24 V / DC
- DMX Channel 3
- blue
- Power consumption
- 12
- W
- DMX Channel 4
- strobe
- DMX Channel 5
- dimmable
- Weighted energy consumption
- 13.2
- kWh/1000h
- Rated current
- 0.6
- A
- Luminous flux with all on
- 573
- lm
- Dim frequency
- 2800
- Hz
- Luminous flux red
- 172
- lm
- Power connection type
- Hybrid plug
- Luminous flux green
- 307
- lm
- Power cable length
- 1.00
- m
- Protection class
- IP68; 2 m
- Luminous flux blue
- 94
- lm

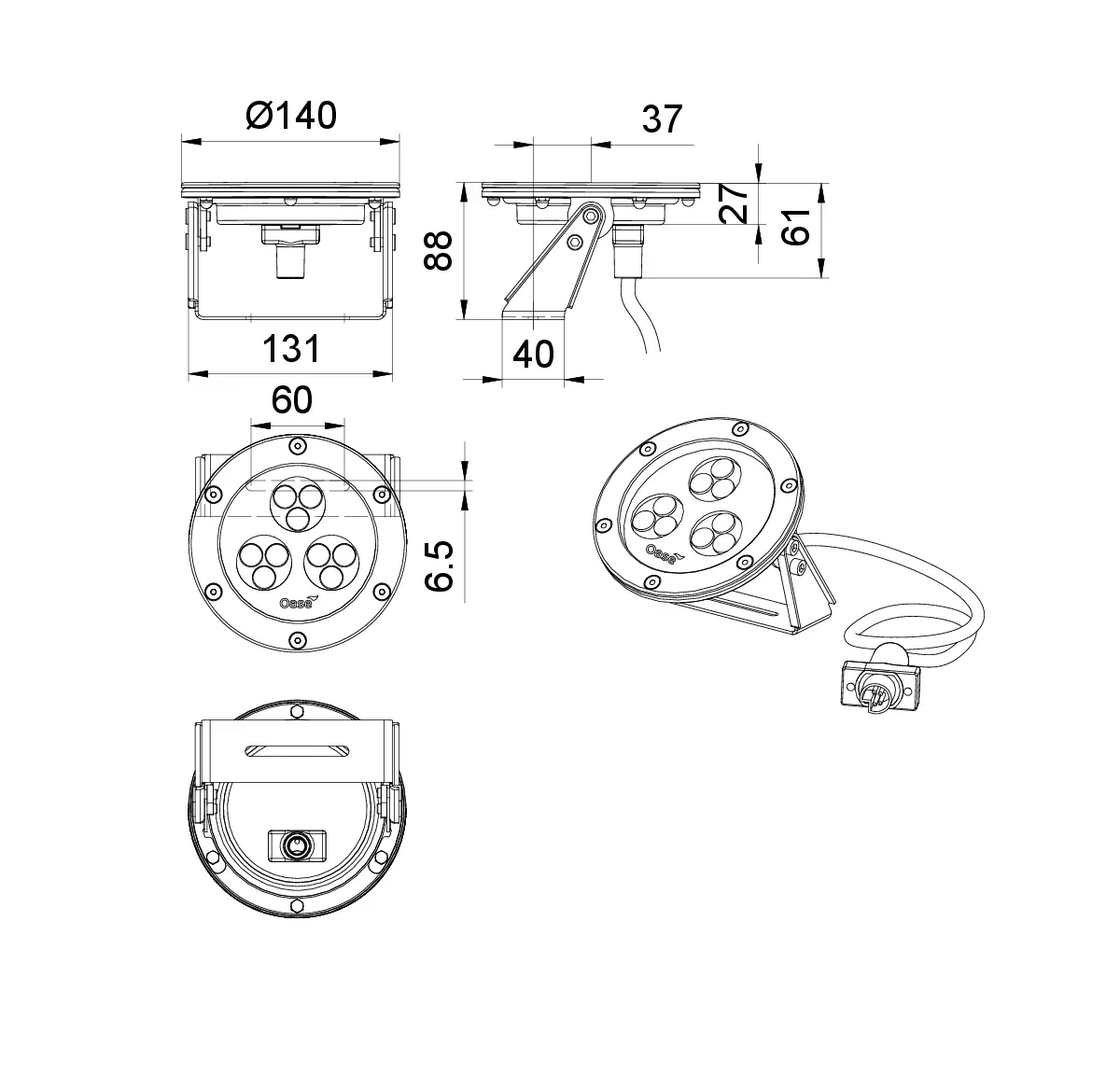

- Dimensions (Ø × H)
- 140 × 88
- mm
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 1.17
- kg
- Stroboscope effect
- 0-25 Hz
Ke stažení
- 2D drawing
- 3D drawing
- 2D drawing
- Eulumdat-files
- Bill of quantity
- Product data sheet
- Product instructions
- Replacement list
