WaterScreenNozzle XL
SKU: 50481
View other products in the family
Key features
- Optimized nozzles for a 180° water screen
- Ideal for rear projection of videos and or lasers
- The gap of the nozzle defining the water film thickness can install individually
The Water Screen Nozzle generates a projection screen made of water to display. It can be used a variety of media including Video and Lasers for special events.
The screen is a complete semi-circle with 180° in different heights as a function of flow rate and pressure delivered by the pump system.
Feature Details
Made of high-quality stainless steel
Perfect for video or laser rear projection
Sizes of the semicircular water umbrella (w × h)
15 m × 5 m (WaterScreenNozzle S) or 45 m × 15 m (WaterScreenNozzle XL)
Water film thickness individually adjustable
Optimized nozzles for a clear 180° water screen
No additional flow control pipe required
Specifications
Specification breakdown
- Dimensions (L × W × H)
- 930 × 528 × 802
- mm
- Water screen dimension
- 45 × 15
- m
- NWR Nozzle water requirement
- 4000.0
- l/min
- NPR Nozzle Pressure Requirement
- 12
- bar
- Material
- Stainless steel 1.4571 (AISI 316Ti)
- Net weight
- 95
- kg
Downloads
- Product data sheet
- 3D drawing

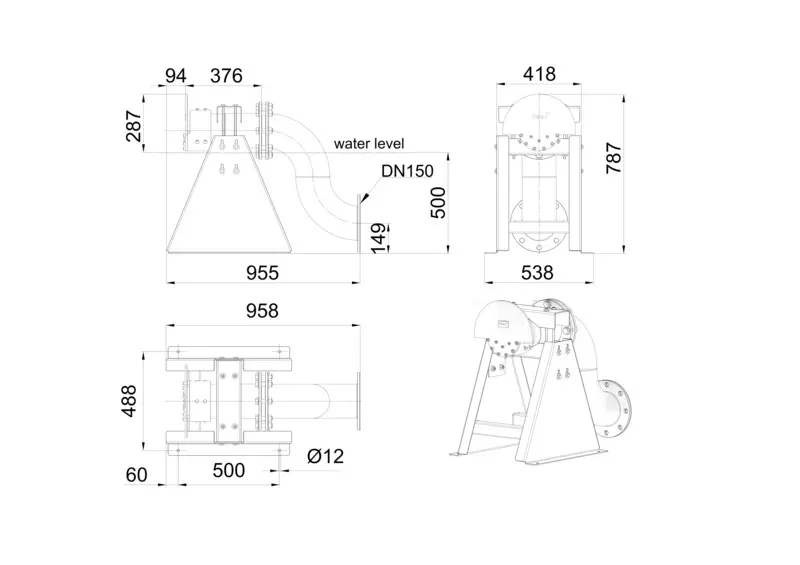

- 2D drawing
- Replacement list
- Bill of quantity
