JumpingJet Rainbow Flash III /DMX/02
SKU: 34138
Key features
- precise, crystal clear, laminar water jet with cut-off device
- Fountain with coloured LED lighting, stainless steel housing
- Can be individually programmed via DMX-RDM
Jumping Jet Rainbow Flash III /DMX/02, an impressive water-light effect; crystal-clear, laser-like water jets shoot in wide arcs through the air. The cut off function enables the 18 mm water jet to be cut individually into short sections. The ring illumination on the stainless steel case with its multi-coloured light spectrum draws special attention at night.

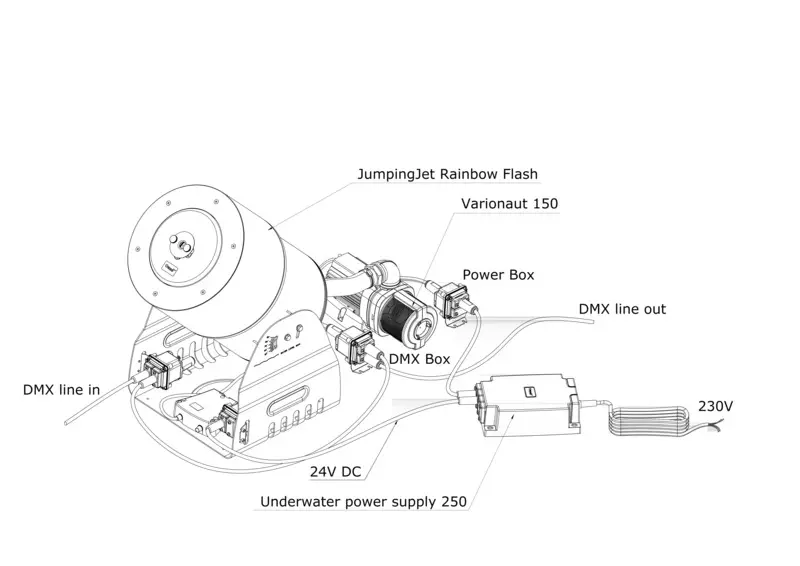

The Jumping Jet is now equipped with 24 V DC technology, thus integrating ideally into the OASE 24 V DC system. The Jumping Jet Rainbow Flash III /DMX/02 is DMX-RDM compatible and suitable for remote maintenance with the corresponding controller. The colour of the integrated RGBW LED light and the length of the water jet can be freely selected and controlled. Through the use of controllable pumps additional dynamic parabolic widths and heights can be generated.
The Jumping Jet is now equipped with 24 V DC technology, thus integrating ideally into the OASE 24 V DC system. The Jumping Jet Rainbow Flash III /DMX/02 is DMX-RDM compatible and suitable for remote maintenance with the corresponding controller. The colour of the integrated RGBW LED light and the length of the water jet can be freely selected and controlled. Through the use of controllable pumps additional dynamic parabolic widths and heights can be generated.
Feature Details
Crystal-clear, laminar, arc-shaped water jet with 18 mm diameter
Wow effect
integrated cutting device for precise subdivision of the beam
Innovative lighting ring with RGBW LED for fascinating color effects
Compact, high-quality stainless steel design
Individually programmable via DMX/RDM
Dynamic parabolas possible in conjunction with controllable pumps
Stable with high stability, low noise and vibration
Easy connection via OASE ProNect connector with IP68 protection class
On request also for seawater
Slide 1 of 4
1 of 4
Specifications
Specification breakdown

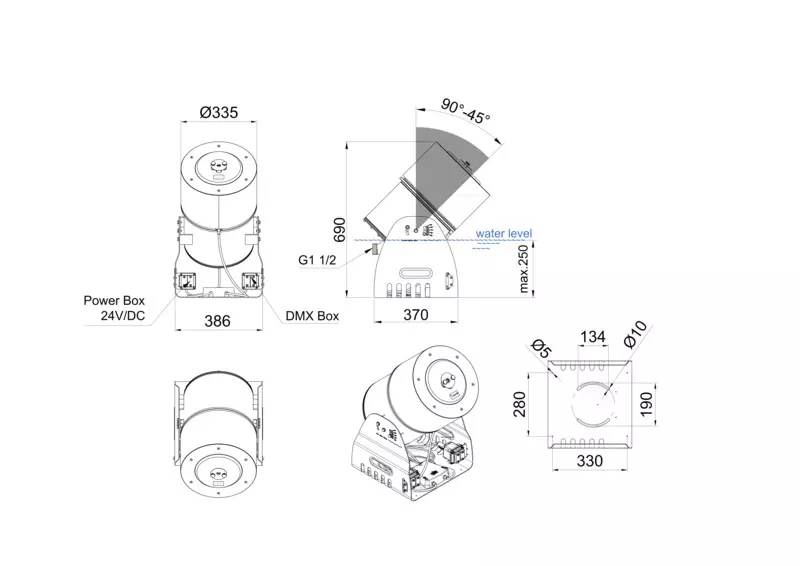

- Dimensions (L × W × H)
- 560 × 386 × 690
- mm
- Number of DMX channels
- 8
- Units
- Rated voltage
- 24 V / DC
- Rated current
- 0.83
- A
- Light colour
- RGBW
- Colour temperature LED white
- 6500 (± 200)
- K
- Power consumption
- 20
- W
- Jet diameter
- 18
- mm

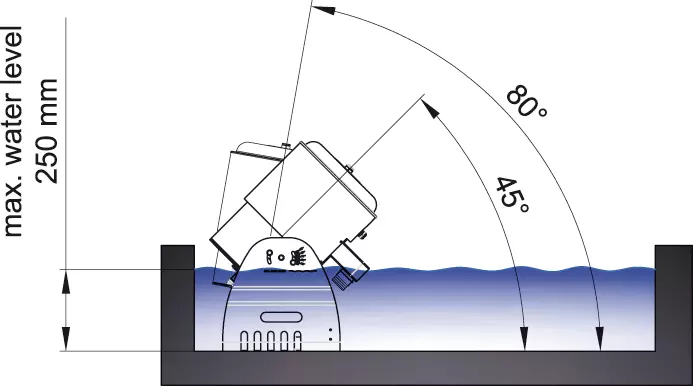

- Vertical swing range
- 45 - 90
- °

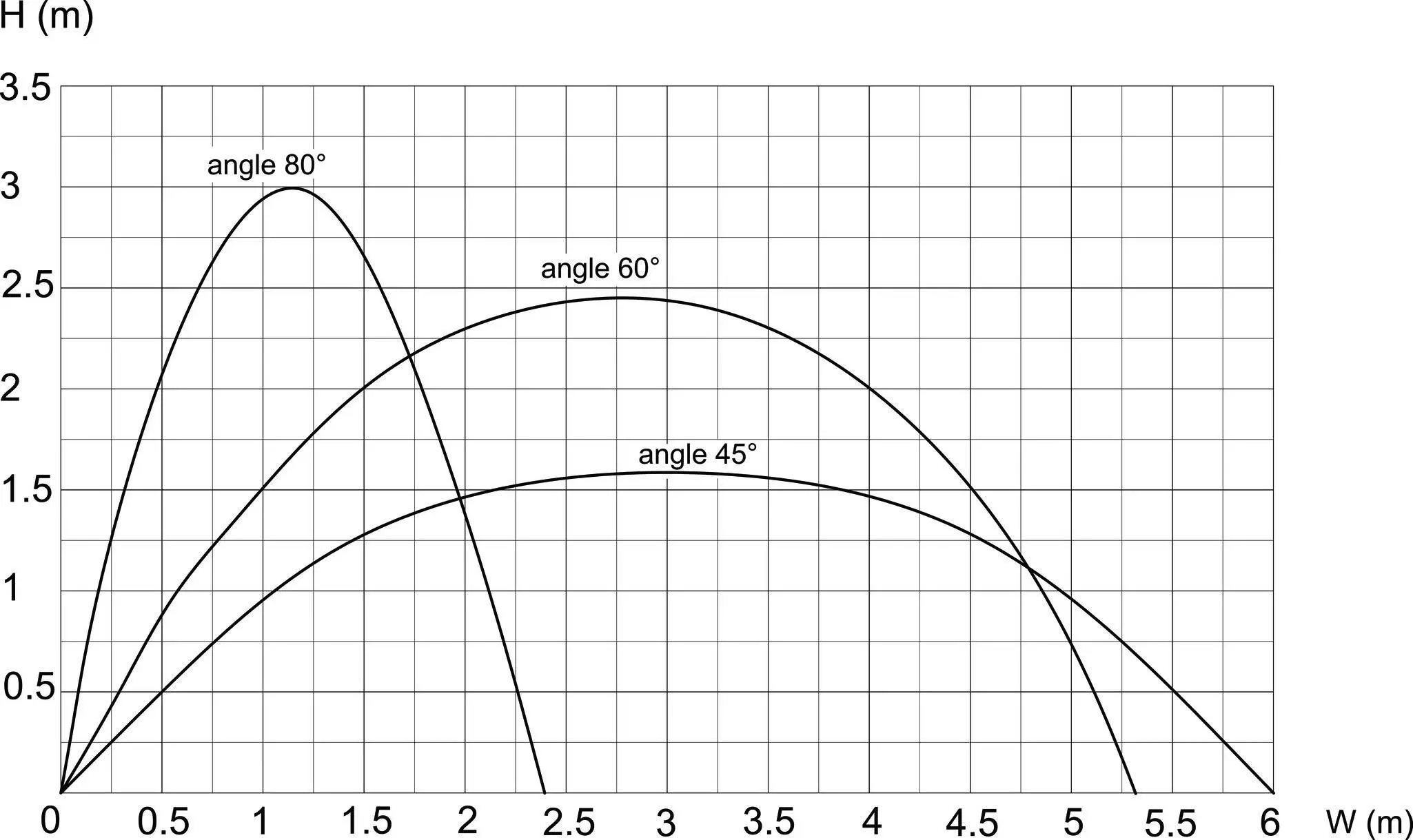

- Water parabola max., laminar with light
- 6.00
- m
- Pressure-side connection
- G 1 ½
- Max. operating pressure
- 0.3
- bar
- Water depth, min.
- 0.00
- m
- Water depth, max.
- 0.25
- m
- Environmental condition: submersible application
- Water temperature: min 4°C to max. 35°C
- Environmental condition: dry application
- Ambient temperature: max. 30°C with natural convection, max. 40 with forced convection, no direct sun exposure permitted
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 39.4
- kg
