Overflow/return box 100 E INT
Key features
- High-quality, robust stainless steel construction
- Easy installation
- Extremely corrosion resistant
Overflow/return armature is installed in the vertical pool wall. Number of armatures used are based on the volume of water that will be returned. However at least two return armatures should be used for safety reasons. A maximum return speed of 0.6 m/s should serve as the basis for calculating the nominal return pipe diameter. The connection ducts easily fit in all muffs of the drain pipes.
Feature Details
Overflow/return boxes for installation in vertical pool walls
Number of valves to be installed depending on the amount of water to be returned – for safety reasons, at least two are recommended
When calculating the return line nominal diameter, assume maximum return velocity of 0.6 m/second
Connectors fit into all sleeves of the drain pipes
Made of stainless steel
Specifications
Specification breakdown
- Connection
- DN 100
- Material
- Stainless steel 1.4301 (AISI 304) / Stainless steel 1.4571 (AISI 316Ti)
- Dimensions (L × W × H)
- 450 × 150 × 180
- mm
- Net weight
- 3.44
- kg
Downloads

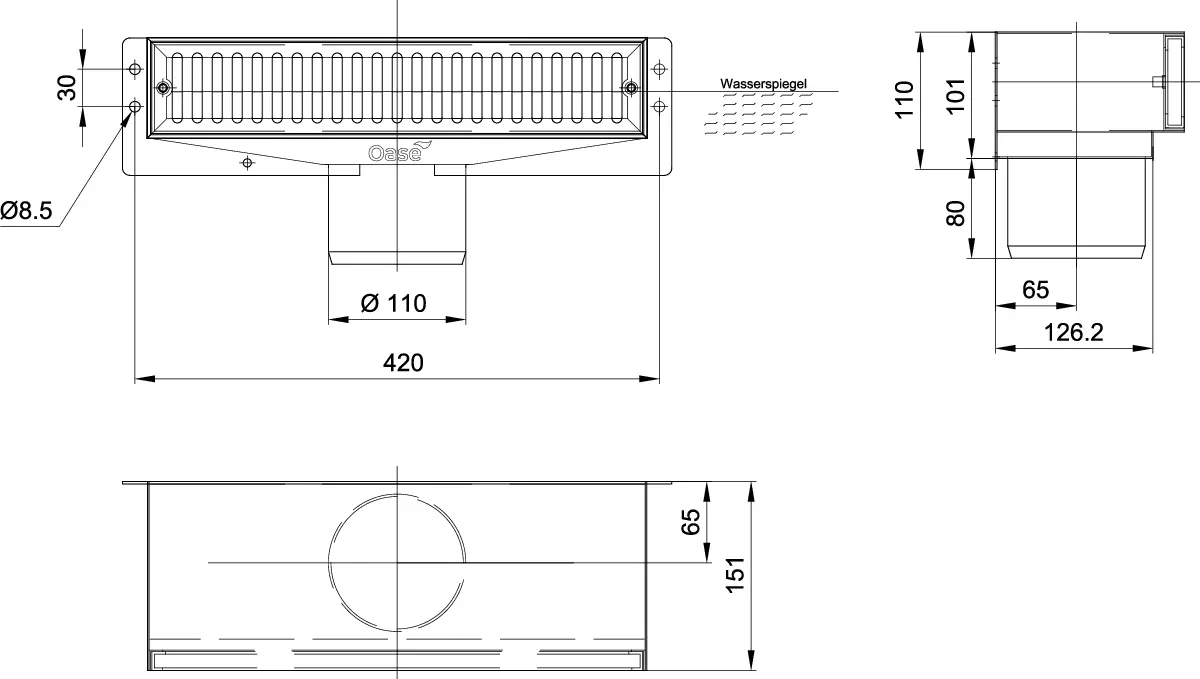

- 2D drawing
