The Varionaut 400 /DMX/02 is the most powerful DMX/RDM compatible pump. This individually adjustable pump generates highly dynamic water features with exact repeatable fountain heights. The maximum fountain height of approx. 10 m is achieved in just 1.1 seconds with the Comet 15 - 15
The two DMX/RDM connections (1 × input, 1 × output) including capillary lock are located directly on the pump. The second DMX/RDM connector allows other devices (such as other pumps or LED fixtures) to be interconnected. The patented IP68 waterproof connector makes installation safer, easier and faster. In addition, this individually addressable or controllable pump is supplied with a power cable for power supply.
The two DMX/RDM connections (1 × input, 1 × output) including capillary lock are located directly on the pump. The second DMX/RDM connector allows other devices (such as other pumps or LED fixtures) to be interconnected. The patented IP68 waterproof connector makes installation safer, easier and faster. In addition, this individually addressable or controllable pump is supplied with a power cable for power supply.
Feature Details
Safe and easy installation thanks to patented waterproof ProNect plug-in connection with IP68 protection – no time-consuming manual wiring
Energy-efficient, highly dynamic DMX/RDM-compatible pump for operation with 230 V
Suitable for indoor and outdoor installation as well as wet and dry installation
Creates water features with exactly repeatable fountain heights
Suitable for seawater
Max. fountain height of approx. 10 m with comet nozzle in only 1.1 seconds
Frost-protected up to –20 °C
Two DMX/RDM connections, making it easy to connect other components, such as spotlights
Slide 1 of 3
1 of 3
Specifications
Specification breakdown
- DMX Channel 1
- Function
- DMX Channel 2
- Speed
- Motor Type / Electronic
- 220 - 240 V, AC, DMX-RDM controlled

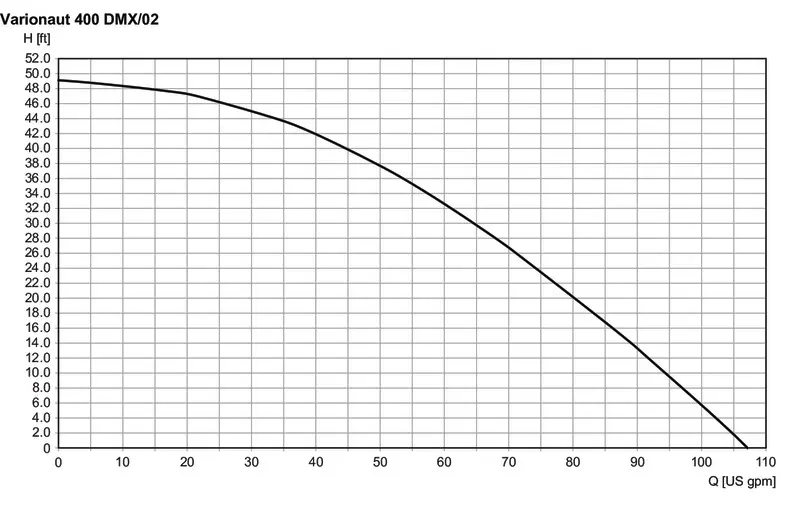

- Delivery head – H max.
- 15.00
- m
- Flow rate Q max.
- 400
- l/min
- Flow rate Q min. (Offset mode – DMX 0)
- 30
- l/min
- Dynamic behavior, speed: time for full fountain height from 0 to 100%
- 1.1 s (Comet 15 - 15)
- Switching frequency/rest period
- 1 × per minute / 10 s
- Pressure-side connection
- G 2
- Suction-side connection
- G 2
- Number of DMX channels
- 2
- Units
- Environmental condition: submersible application
- Water temperature: min. +39.2 °F to max. +95 °F
- Environmental condition: dry application
- 86°F max with natural convection, 104°F max with forced cooling, no direct sunlight allowed
- Rated voltage
- 220 - 240 V / AC
- Power consumption max.
- 730
- W
- DMX-RDM connection type
- DMX-Box /01
- Protection class
- IP68; 4 m
- Immersion depth max.
- 4.00
- m
- Material
- Stainless steel 1.4571 (AISI 316Ti) / Plastic
- Dimensions (L × W × H)
- 524 × 213 × 266
- mm
- Net weight
- 14.22
- kg
