ProfiLux Basic LED XL RGBW Spot /DMX/02
SKU: 70134
Visualizza altri prodotti della famiglia
The ProfiLux Basic LED XL RGBW Spot /DMX/02 is a powerful RGBW light with a robust holder and a narrow beam angle of 11°, 1263 lumens.
The LED Basic light comes with high quality stainless steel housing and holder for fresh- and pool water. These lights have a temperature regulation and overheating protection so that wet and dry installation is possible. They have a lifetime up to 50.000 hours (In case of underwater application, an intelligent heat management and quality LED enables a lifetime of up to 50.000 hrs.. This claim does not entitle to a guarantee).The brightness of the colours of the LED RGB lights are measuredindividually.Our OASE Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.
* In case of underwater application, an intelligent heat management and quality LED enables a lifetime of up to 50,000 hrs. This claim does not entitle to a guarantee.
The LED Basic light comes with high quality stainless steel housing and holder for fresh- and pool water. These lights have a temperature regulation and overheating protection so that wet and dry installation is possible. They have a lifetime up to 50.000 hours (In case of underwater application, an intelligent heat management and quality LED enables a lifetime of up to 50.000 hrs.. This claim does not entitle to a guarantee).The brightness of the colours of the LED RGB lights are measuredindividually.Our OASE Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.
* In case of underwater application, an intelligent heat management and quality LED enables a lifetime of up to 50,000 hrs. This claim does not entitle to a guarantee.
Dettagli delle caratteristiche

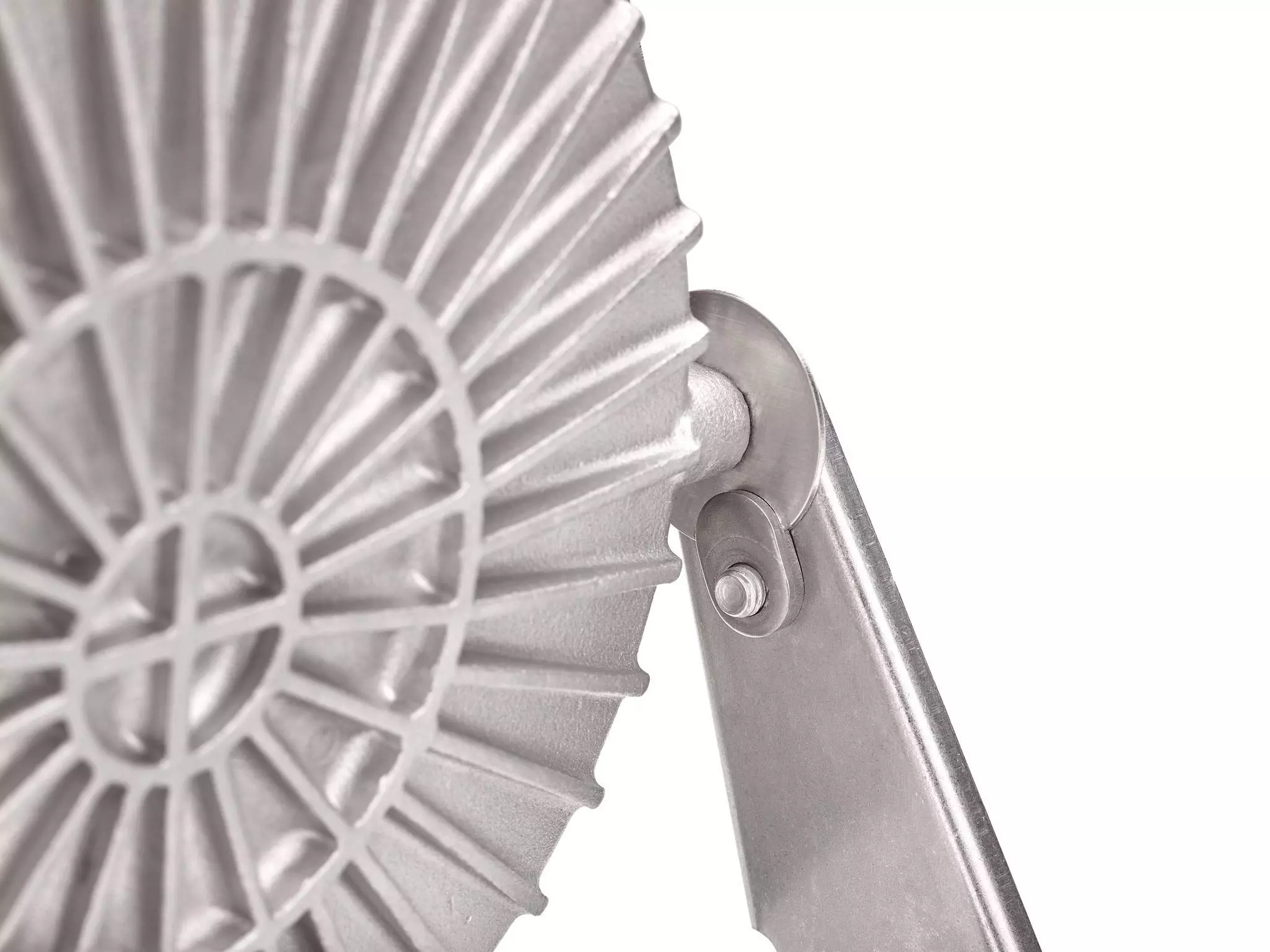

High-quality stainless steel housing with robust bracket and fine adjustment

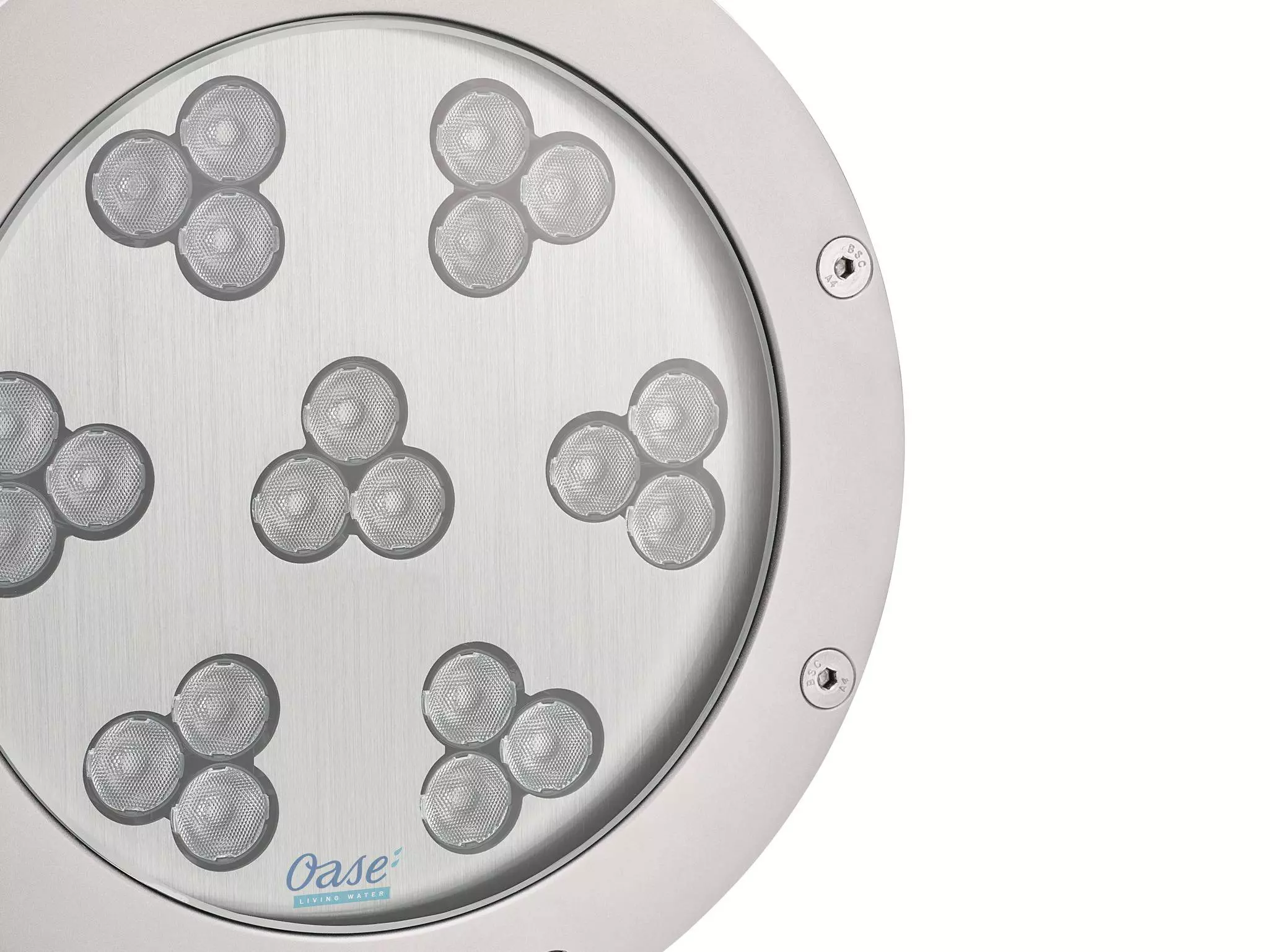

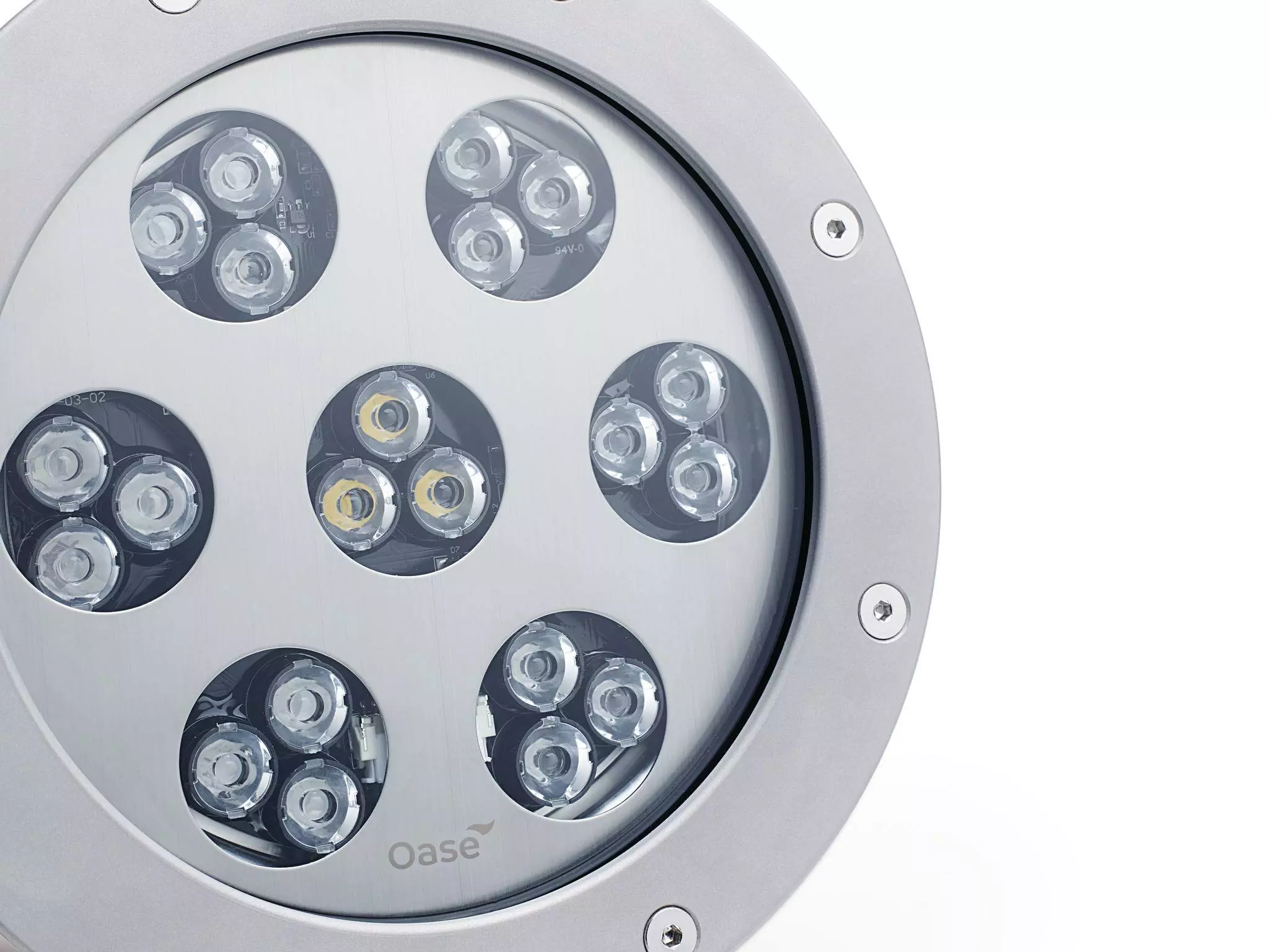

Powerful RGBW LED spotlight for wet and dry installation
Temperature-controlled, high-quality brand LEDs with a lifespan of up to 50,000 hours*
Uniform brightness of all luminaires and homogeneous color combination
Waterproof according to IP68 up to 2 m water depth

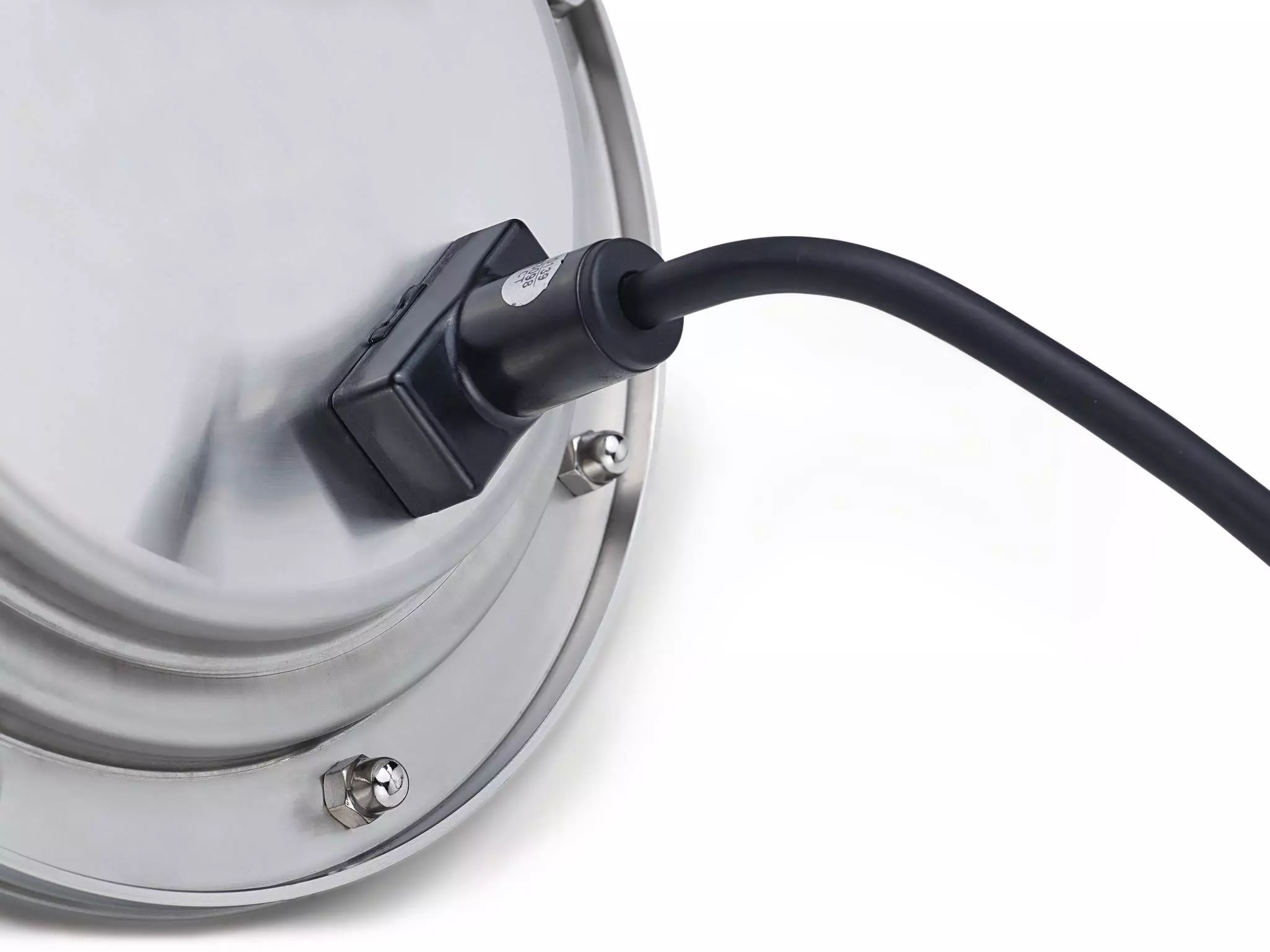

1 m cable length with patented waterproof OASE ProNect connector

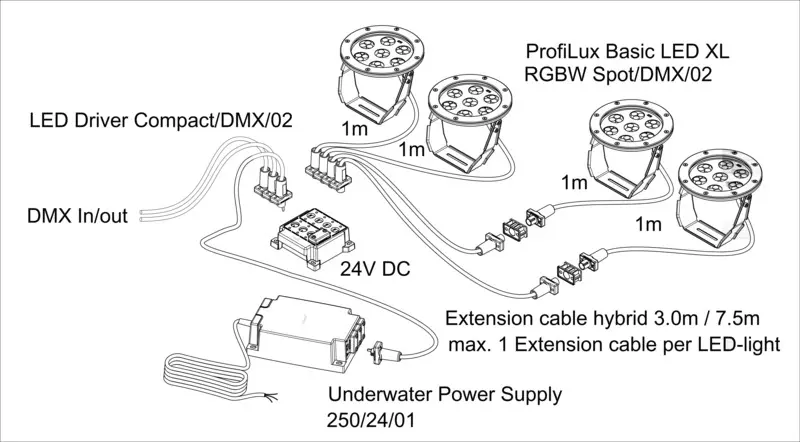

Controllable and DMX/RDM-capable with Underwater LED Driver Compact /DMX/02, dimmable, perfect for strobe effects
Galvanic isolation between DMX and 24 V DC
Slide 1 of 5
1 of 5
Slide 1 of 7
1 of 7
Specifiche
Panoramica delle specifiche
- Luminous flux withe
- 313
- lm
- Certificate
- MET US + C
- Colour temperature LED white
- 4000 (± 200)
- K
- Number of DMX channels
- 6
- Units
- Colour rendering index (CRI)
- 80
- %
- DMX Channel 1
- red

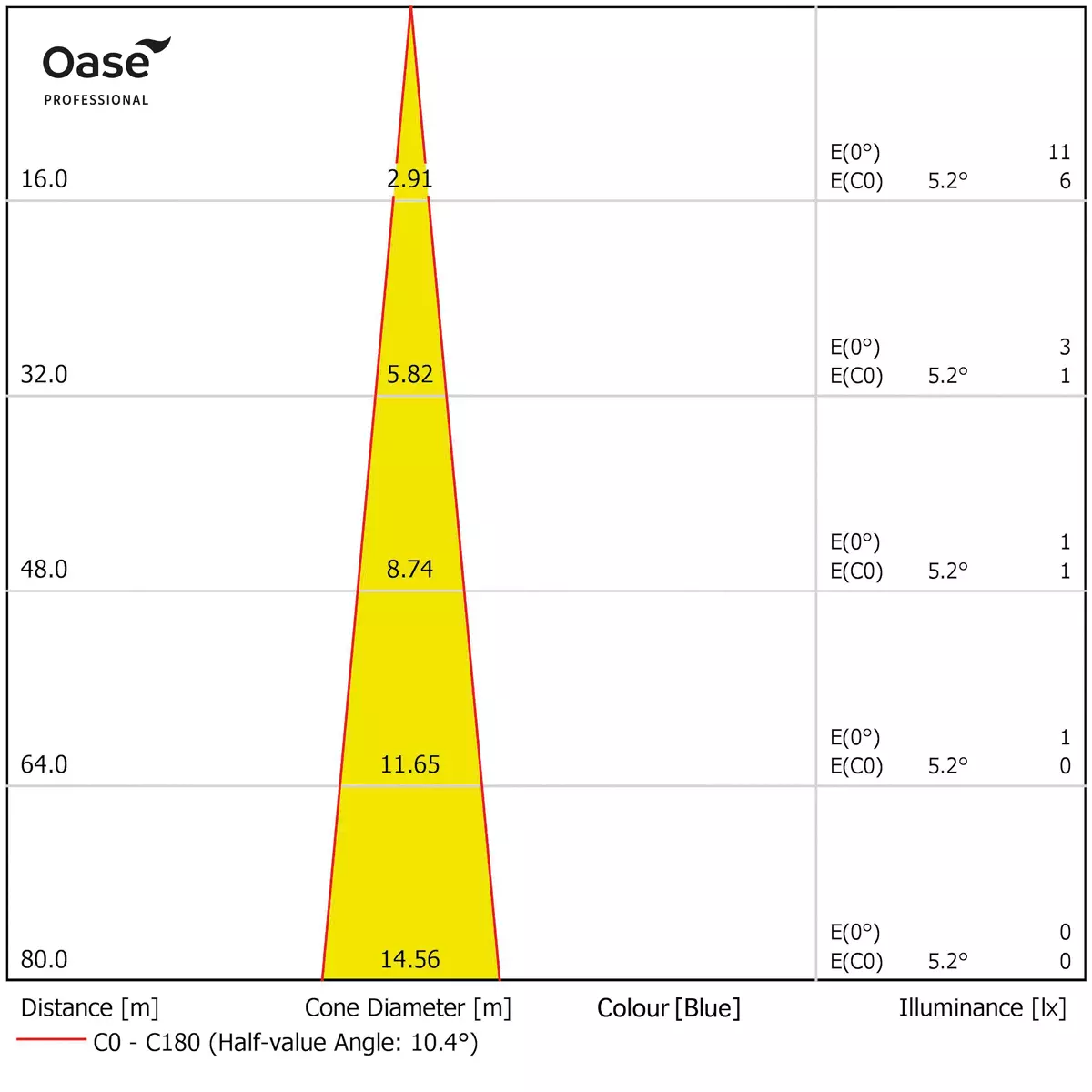

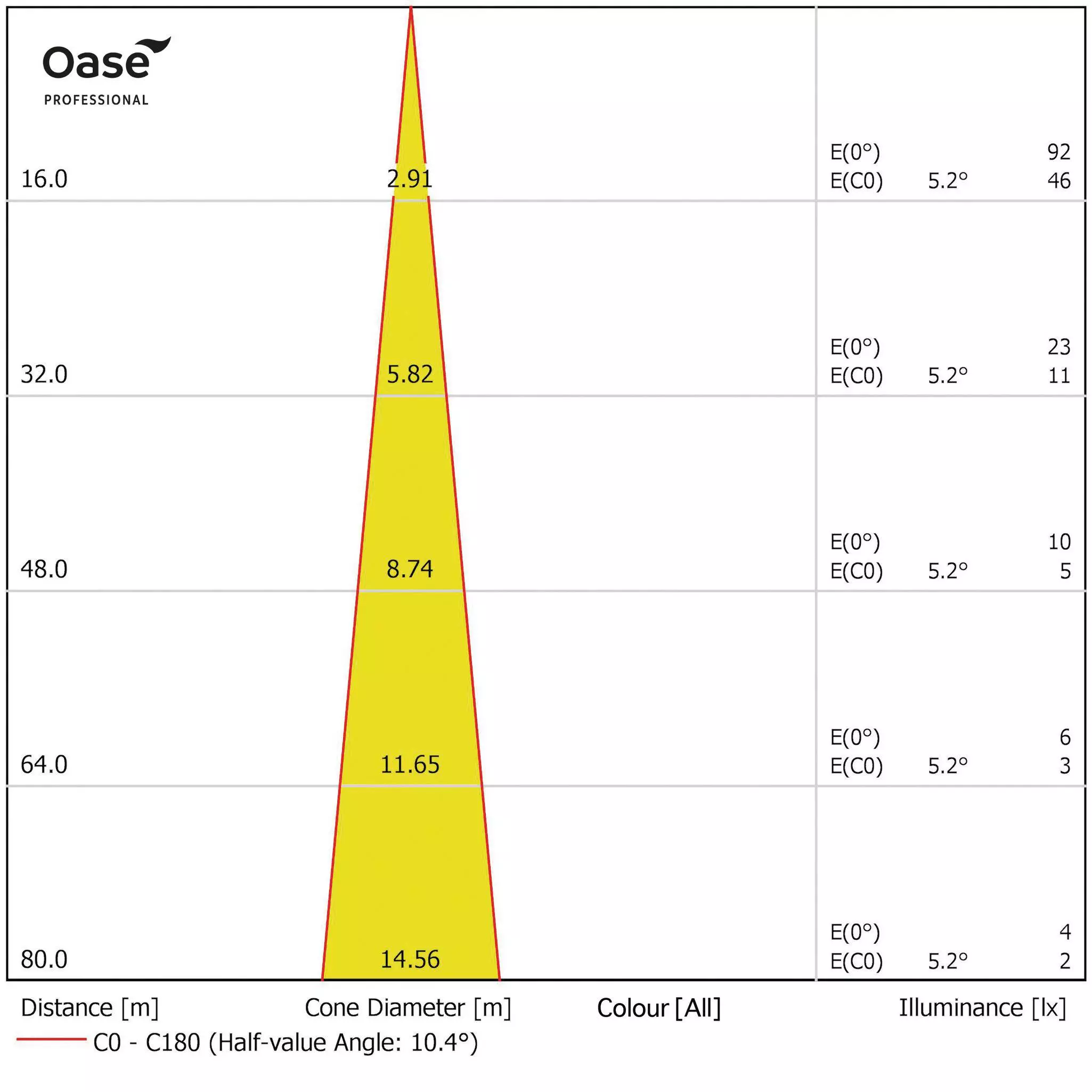

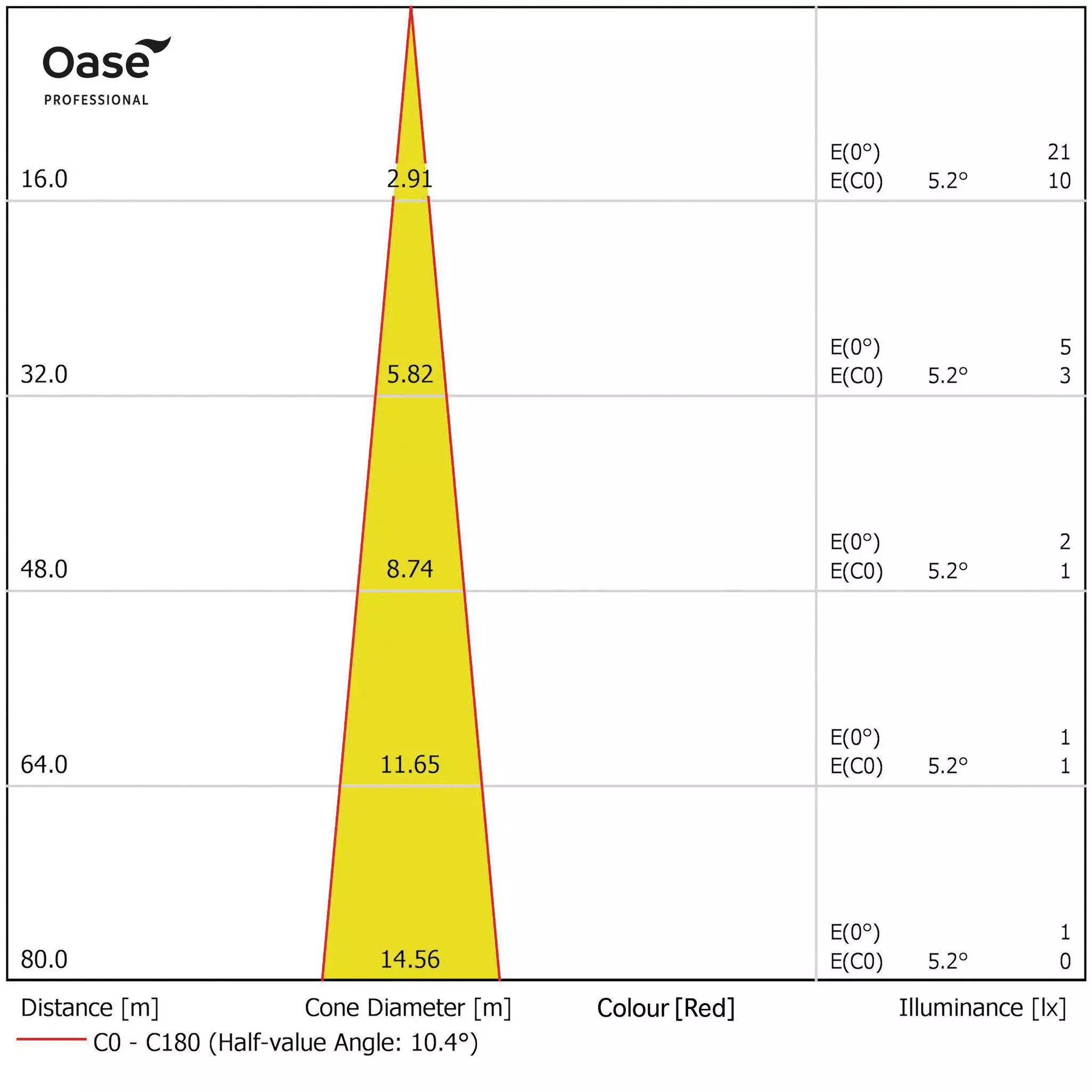

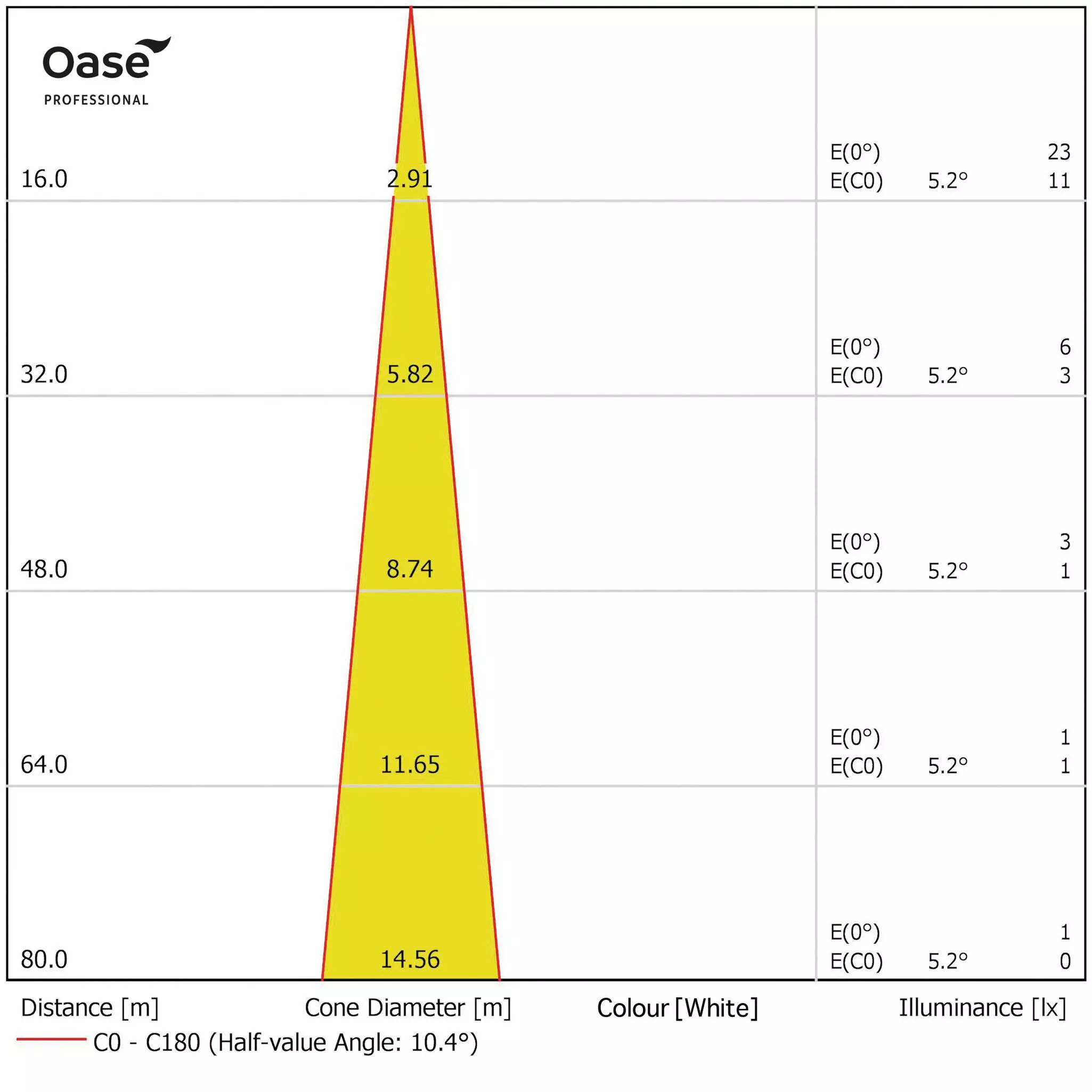

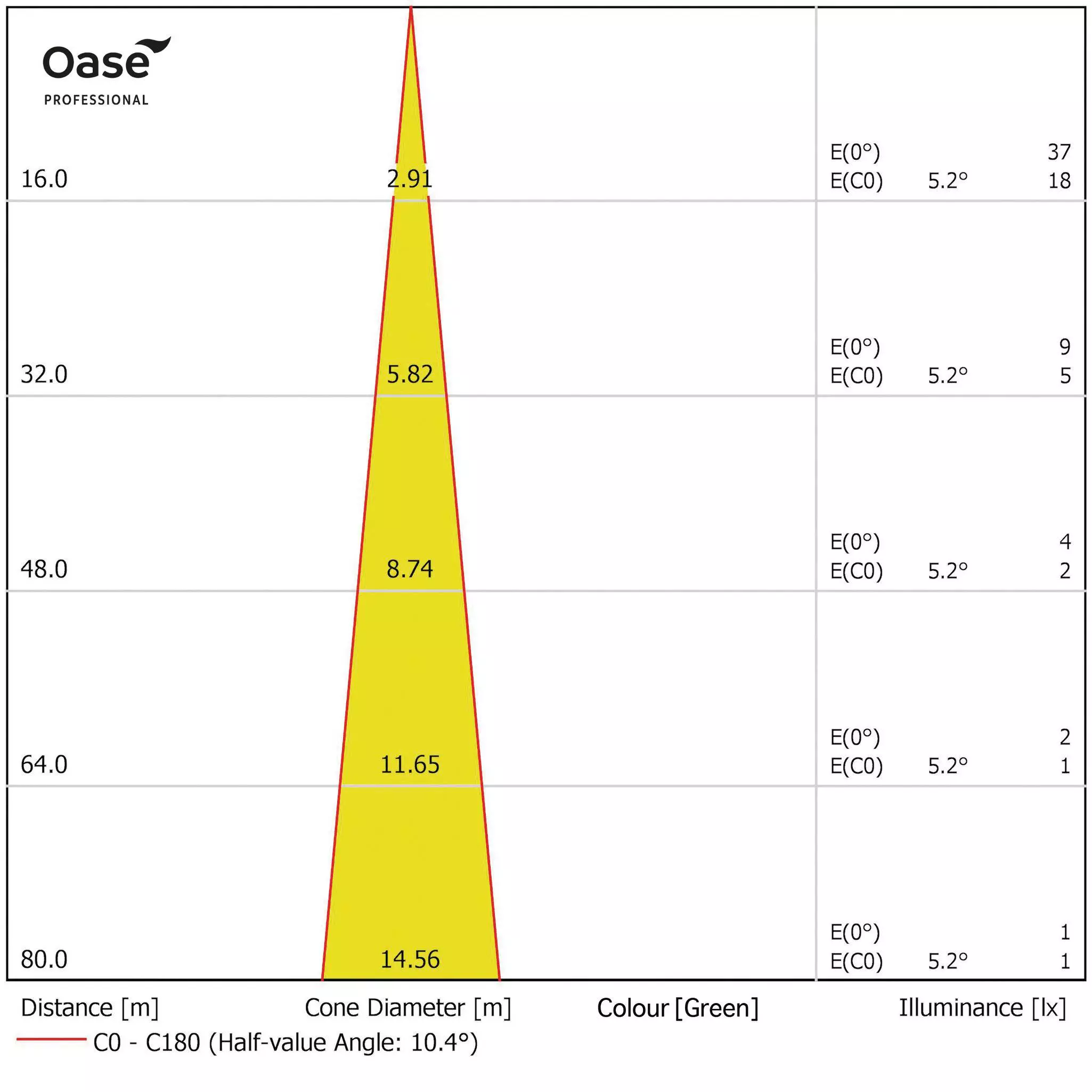

- Beam angle
- 11 Degrees (± 2)
- DMX Channel 2
- green
- Rated voltage
- 24 V / DC
- DMX Channel 3
- blue
- Power consumption
- 20.4
- W
- DMX Channel 4
- white
- DMX Channel 5
- strobe
- Weighted energy consumption
- 22.4
- kWh/1000h
- DMX Channel 6
- dimmable
- Rated current
- 1.18
- A
- Luminous flux with all on
- 1263
- lm
- Dim frequency
- 2800
- Hz
- Luminous flux red
- 284
- lm
- Power connection type
- Hybrid plug
- Luminous flux green
- 509
- lm
- Power cable length
- 1.00
- m
- Protection class
- IP68; 2 m
- Luminous flux blue
- 156
- lm

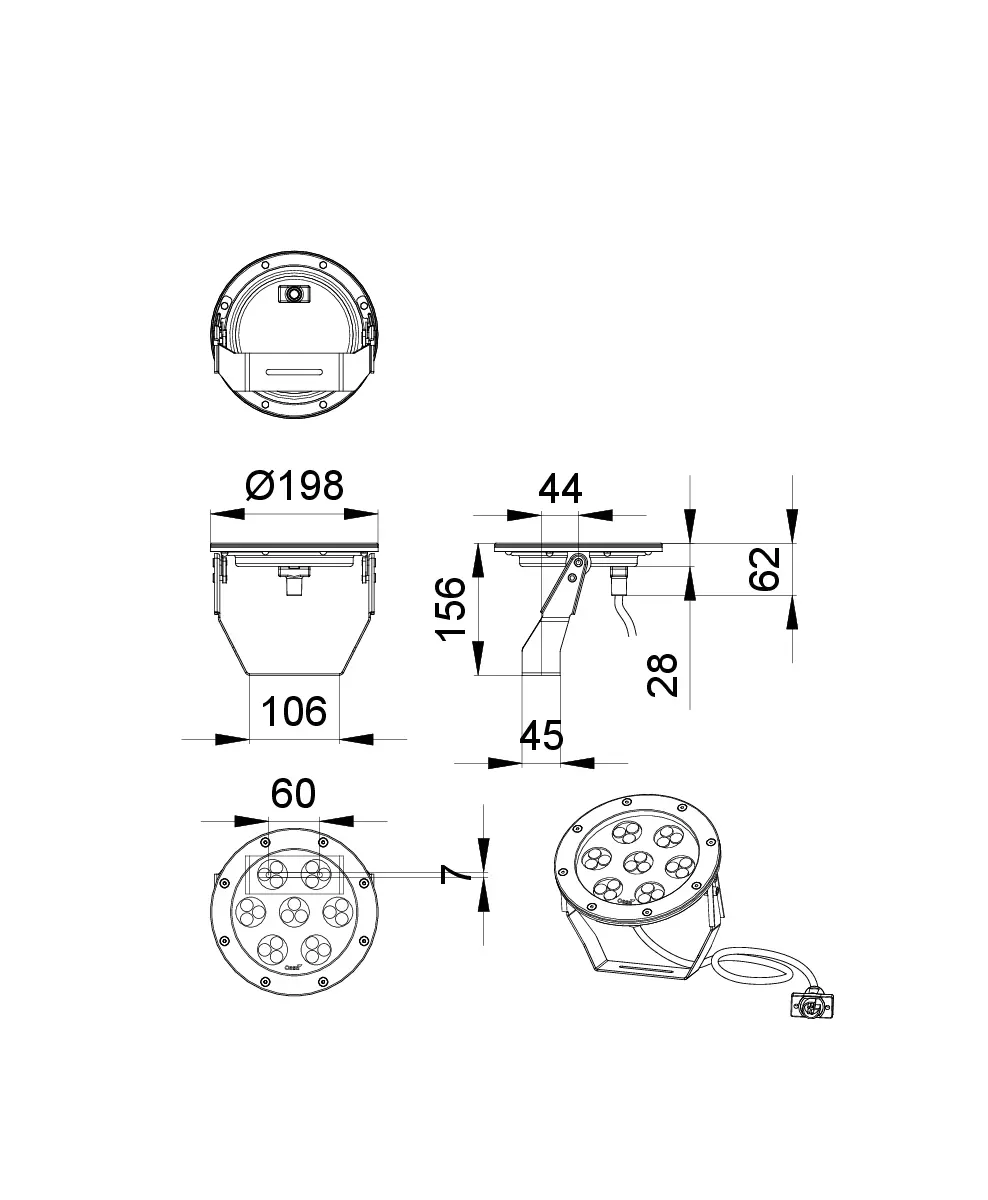

- Dimensions (Ø × H)
- 198 × 156
- mm
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 0.304
- kg
- Stroboscope effect
- 0-25 Hz
