The swivel creates swivelling and impressive water effects.
These water effects are formed by combining this single dimensional drive with a pivoting range of max. 180° on the y-axis and nozzles (Comet Prec 20-20 E, Finger Nozzle 7-15 E)
* Saltwater product version on request.
These water effects are formed by combining this single dimensional drive with a pivoting range of max. 180° on the y-axis and nozzles (Comet Prec 20-20 E, Finger Nozzle 7-15 E)
* Saltwater product version on request.
Dettagli delle caratteristiche
Energy-efficient motor, 24 V DC
Safety low voltage 24 V DC
Controllable via DMX/RDM
Creates swirling, impressive water effects
Single-axis drive with a swivel range of 180°
Creative freedom through combination with different nozzles, for example with precision or fan nozzles
Robust stainless steel design
For fresh and pool water, seawater on request
Slide 1 of 4
1 of 4
Specifiche
Panoramica delle specifiche
- Number of DMX channels
- 4
- Units
- DMX Channel 1 x axe
- Position
- DMX Channel 2 x axe
- Fine
- DMX Channel 3 x axe
- Speed
- DMX Channel 4 x axe
- Function
- Max. operating pressure
- 2.5
- bar
- Water level min.
- 360
- mm
- Waterlevel max.
- 450
- mm
- Waterlevel Parking Position
- 450
- mm
- Swing Range - Factory
- 180
- °
- Connection nozzles
- G 2 (internal thread)
- Pressure-side connection
- DN 65
- Power consumption
- 26.4
- W
- Rated voltage
- 24 V / DC
- Rated current
- 1.1
- A
- Power connection type
- Power-Box 24 V DC /01
- DMX-RDM connection type
- DMX-Box /01
- Protection class
- IP68
- Dimensions (L × W × H)
- 589 × 314 × 450
- mm
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 31.4
- kg
Download

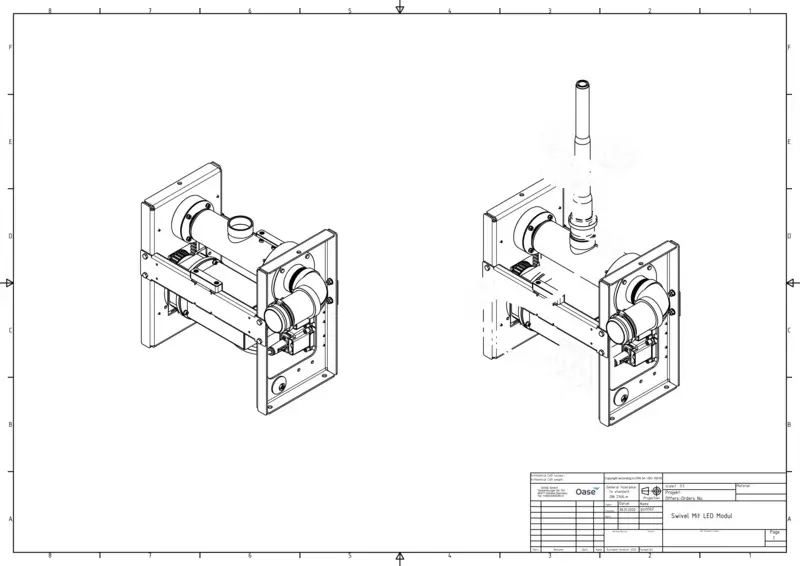

- 3D drawing

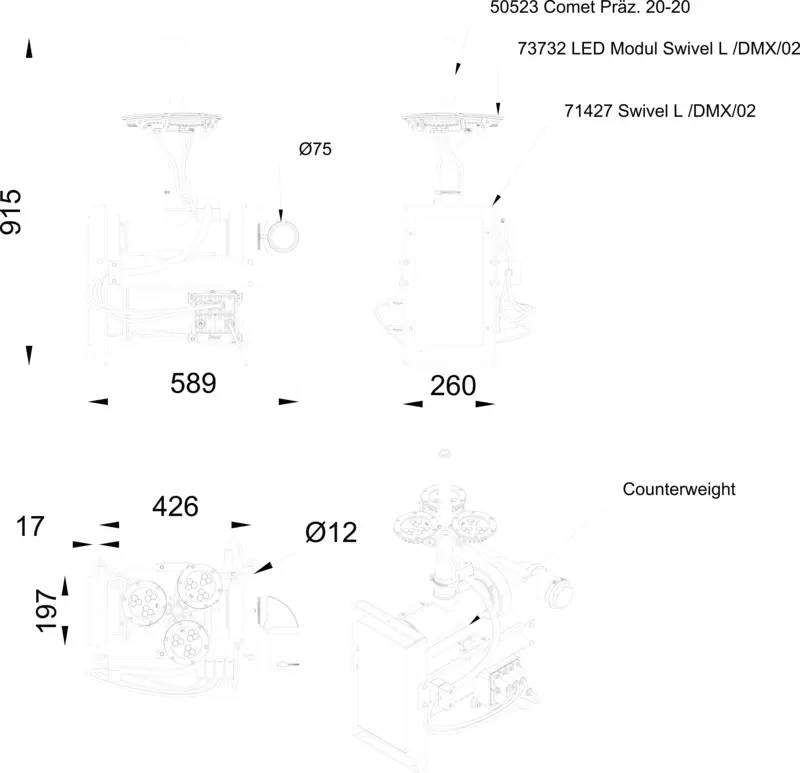

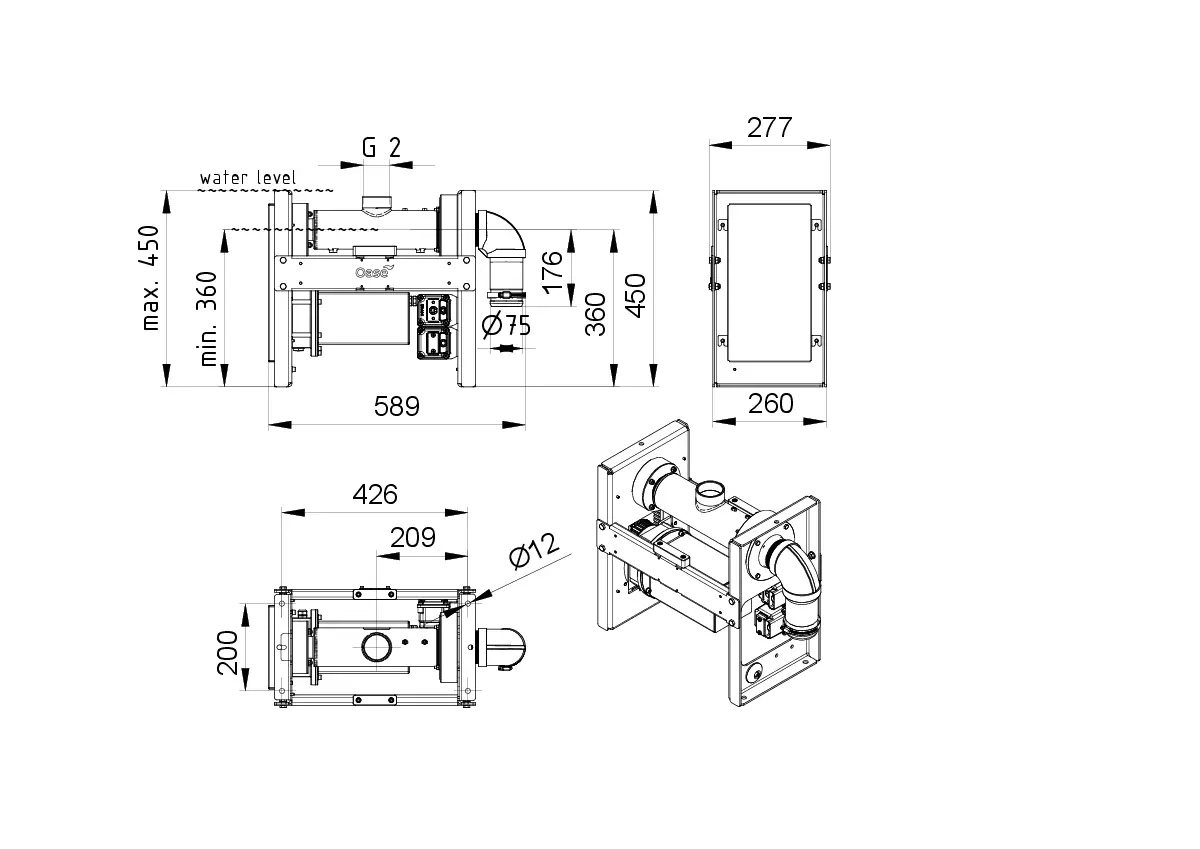

- 2D drawing
