The VarioJet Nozzle creates a dynamic, variable water pattern. The nozzle is driven by two Varionaut pumps.
The nozzle generates spray patters from a water bell up to a single stream. These different waterpatterns are formed by controlling both the Varionaut pumps individually.
* Saltwater product version on request.
The nozzle generates spray patters from a water bell up to a single stream. These different waterpatterns are formed by controlling both the Varionaut pumps individually.
* Saltwater product version on request.
Dettagli delle caratteristiche
Saltwater version on request
Tip
even more complex water images with VarioJet Crown, the combination of VarioJet and CrownNozzle – for example water lilies
Dynamic, fascinating water effects through variable volume flows
Two pressure connections for connecting two Varionaut pumps
With adjustment flange and connection hose for easy alignment
Made of high-quality, durable stainless steel
Slide 1 of 5
1 of 5
Specifiche
Panoramica delle specifiche

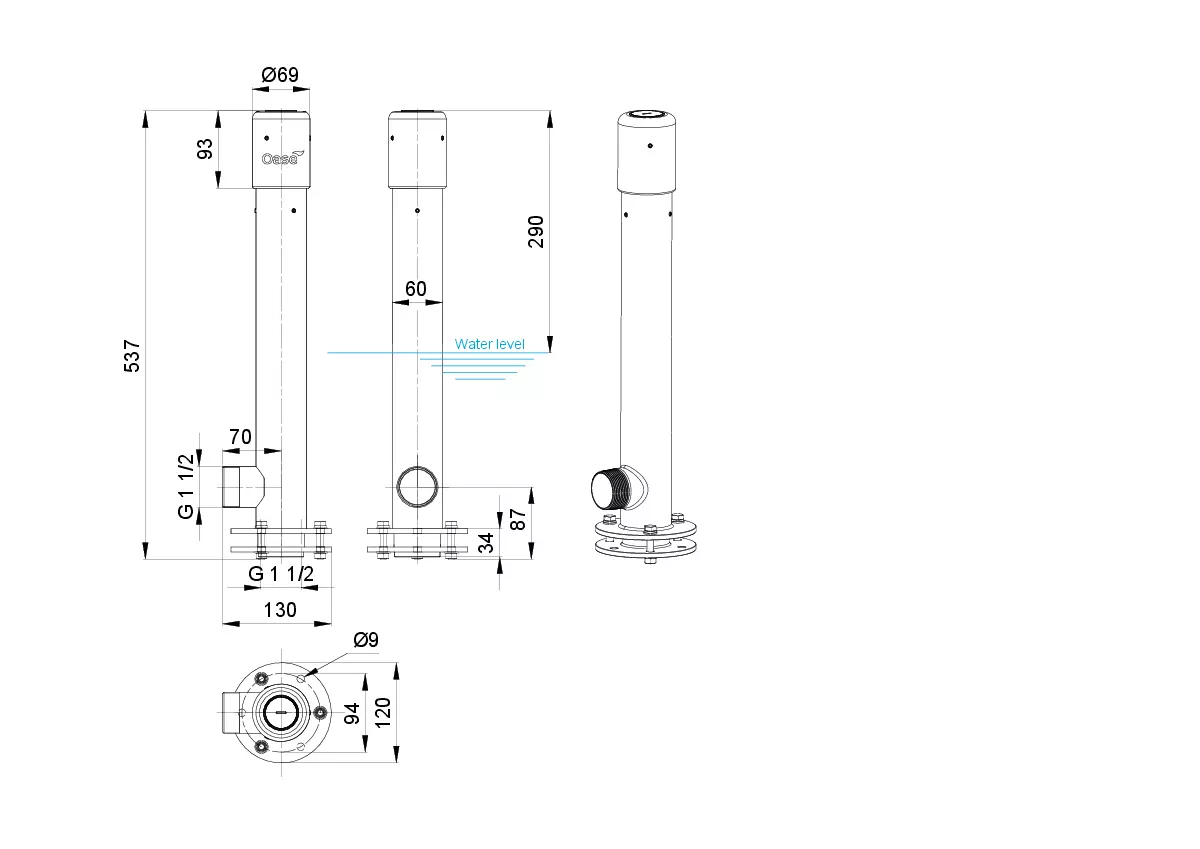

- Dimensions (L × W × H)
- 130 × 120 × 537
- mm
- Fountain height max. (2 × Varionaut 150)
- 3.00
- m
- Fountain height max. (2 × Varionaut 240)
- 4.60
- m
- Fountain height max. (2 × Varionaut 270)
- 5.40
- m
- Material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 5.115
- kg
Download
- 3D drawing
- 2D drawing
- Replacement list
- Product instructions
- Product data sheet
- Bill of quantity
- 2D drawing
