Varionaut 240 24 V /DMX/02
SKU: 46821
Visualizza altri prodotti della famiglia
The Varionaut 240 24 V /DMX/02 is the most powerful DMX/RDM compatible pump with 24 V DC technology. This highly dynamic, individually adjustable pump generates water features with exact repeatable fountain heights. The maximum fountain height of 4.8 m is achieved in just 1 second with the Comet 15 - 15.
The Varionaut 240 complies with the international installation regulations for fountain installations and may be installed directly in the pool (<30V DC). Two DMX/RDM connections (1 × input, 1 × output) including capillary lock are fixed to the pump. The second DMX/RDM connector allows other devices (such as other pumps or LED fixtures) to be interconnected. The patented IP68 waterproof connector makes installation safer, easier and faster.
The Varionaut 240 complies with the international installation regulations for fountain installations and may be installed directly in the pool (<30V DC). Two DMX/RDM connections (1 × input, 1 × output) including capillary lock are fixed to the pump. The second DMX/RDM connector allows other devices (such as other pumps or LED fixtures) to be interconnected. The patented IP68 waterproof connector makes installation safer, easier and faster.
Dettagli delle caratteristiche
24 V operation allows installation directly in the pool
Frost-protected up to –20 °C
Highly dynamic 24 V DC fountain pump
Creates individually adjustable water features with exactly repeatable fountain heights of up to 4.8 m with a matching comet fountain nozzle – in just one second
Suitable for indoor and outdoor installation as well as wet and dry installation

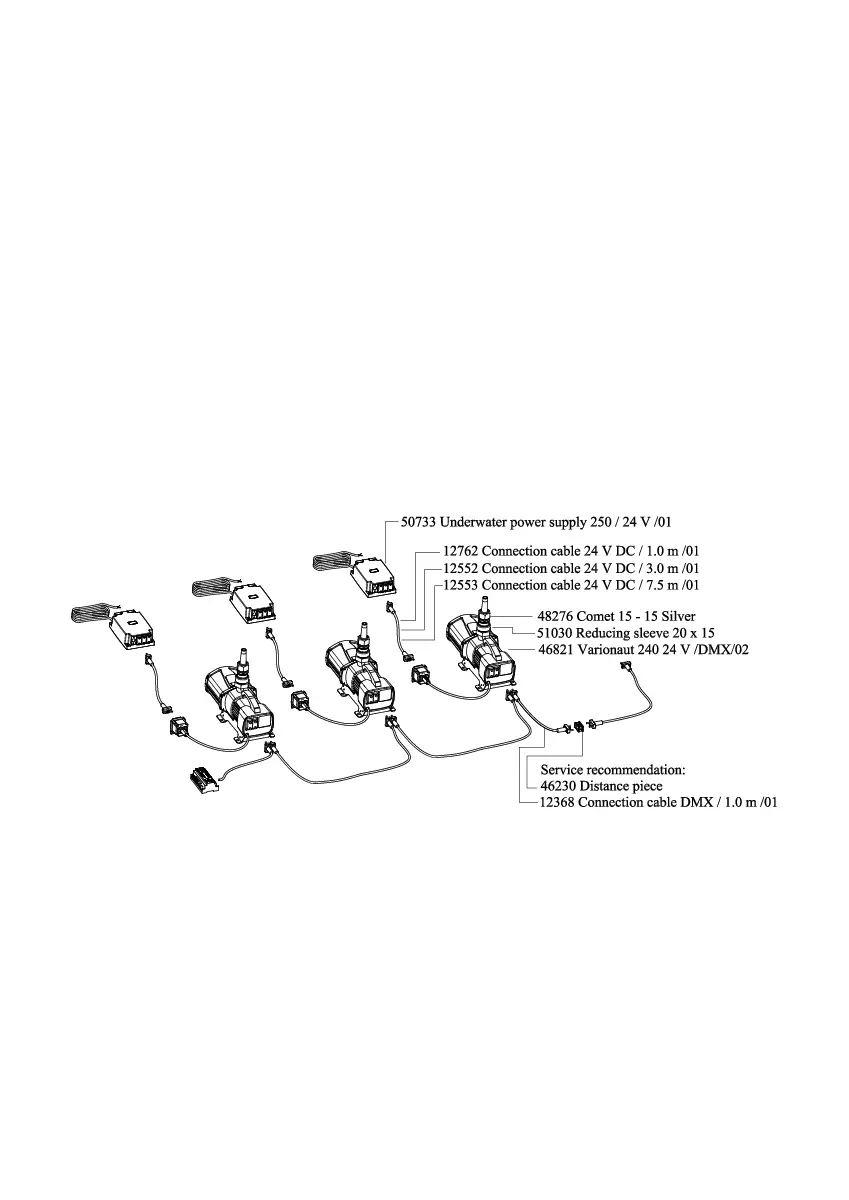

Two DMX/RDM connections, thus connection or loop-through option for e.g. additional pumps or for spotlights
Safe and easy installation thanks to patented waterproof ProNect connector with IP68 protection
Slide 1 of 7
1 of 7
Specifiche
Panoramica delle specifiche
- Motor Type / Electronic
- 24 V, DC, DMX-RDM controlled

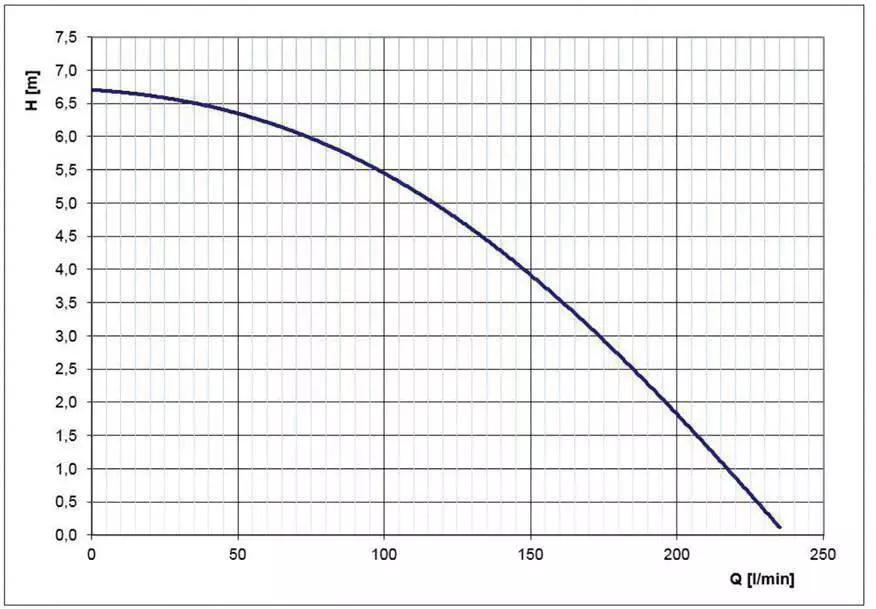

- Delivery head – H max.
- 6.70
- m
- Flow rate Q max.
- 240
- l/min
- Flow rate Q min. (Offset mode – DMX 0)
- 10
- l/min
- Active power consumption max.
- 240
- W
- Apparent power consumption max.
- 240
- VA
- Power consumption at min. fountain height
- 25
- W
- Power consumption at max. fountain height
- 240
- W
- Rated current
- 10
- A
- Rated voltage
- 24 V / DC
- Dynamic behavior, speed: time for full fountain height from 0 to 100%
- 1 s (Comet 15 - 15)
- Start-up time after applying the mains voltage
- < 3
- sec.
- Switching frequency/rest period
- 1 × per minute / 10 s
- Environmental condition: submersible application
- Water temperature: min 4°C to max. 35°C
- Environmental condition: dry application
- Ambient temperature: max. 30°C with natural convection, max. 40 with forced convection, no direct sun exposure permitted
- Protection class
- IP68; 4 m
- Protection class (EN 61140)
- III
- Installation position
- Horizontal
- Minimum distance to neighboring devices
- 100
- mm
- Immersion depth max.
- 4.00
- m
- Suction-side connection
- G 2
- Connection type, suction-side
- External thread
- Pressure-side connection
- G 2
- Connection type, pressure side
- External thread
- DMX-RDM connection type
- 1-m BUS cable with box
- Number of DMX channels
- 2
- Units
- DMX Channel 1
- Function
- DMX Channel 2
- Speed

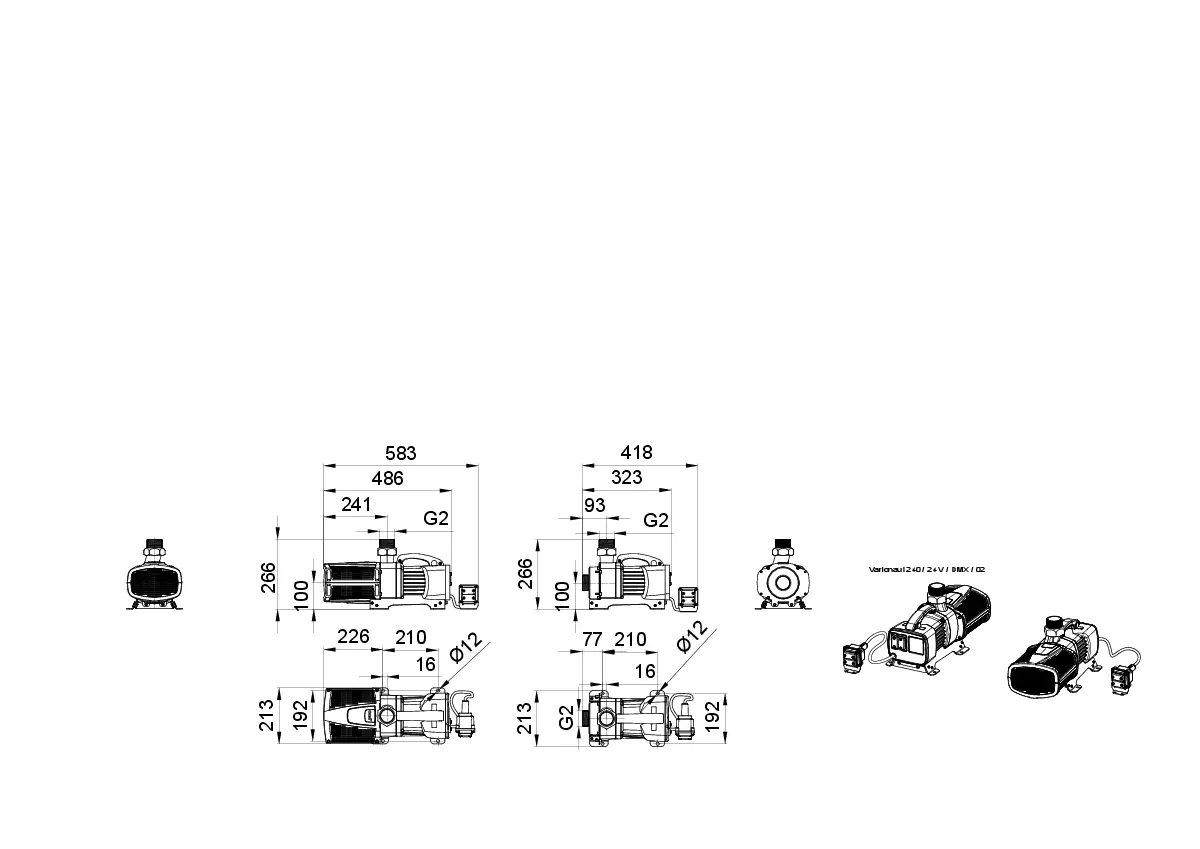

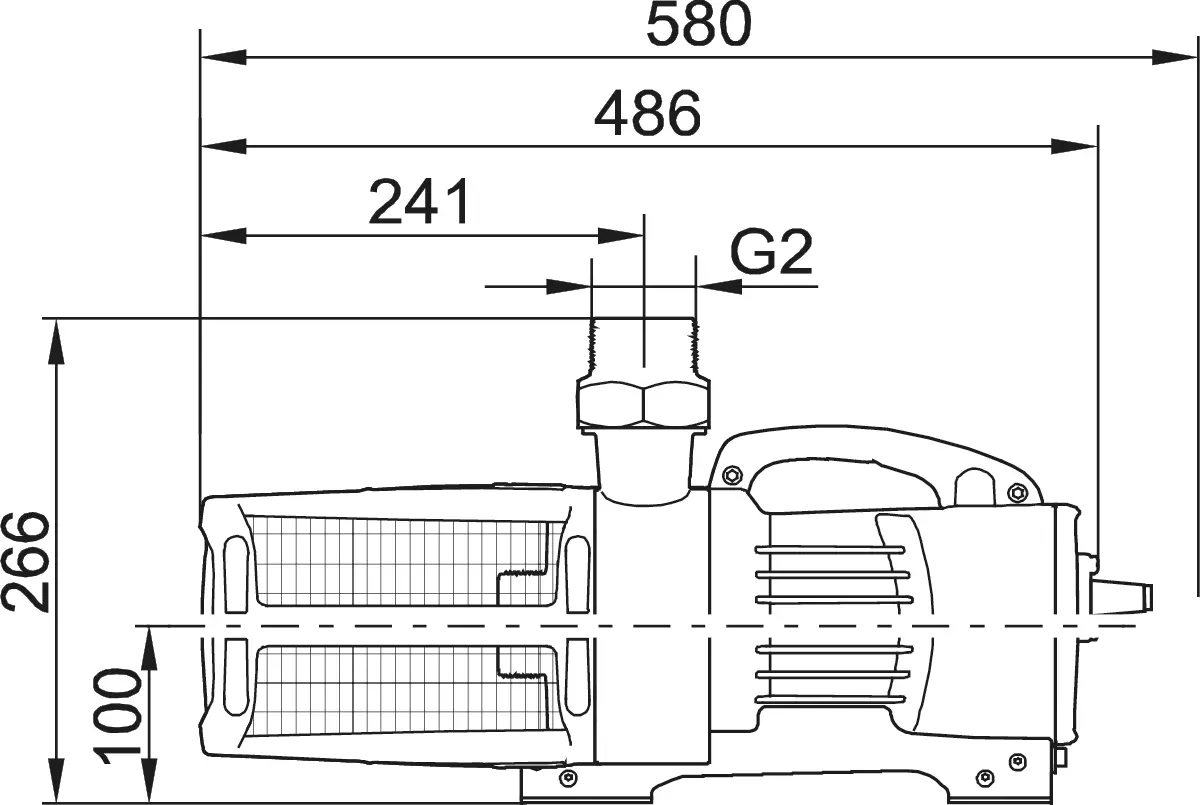

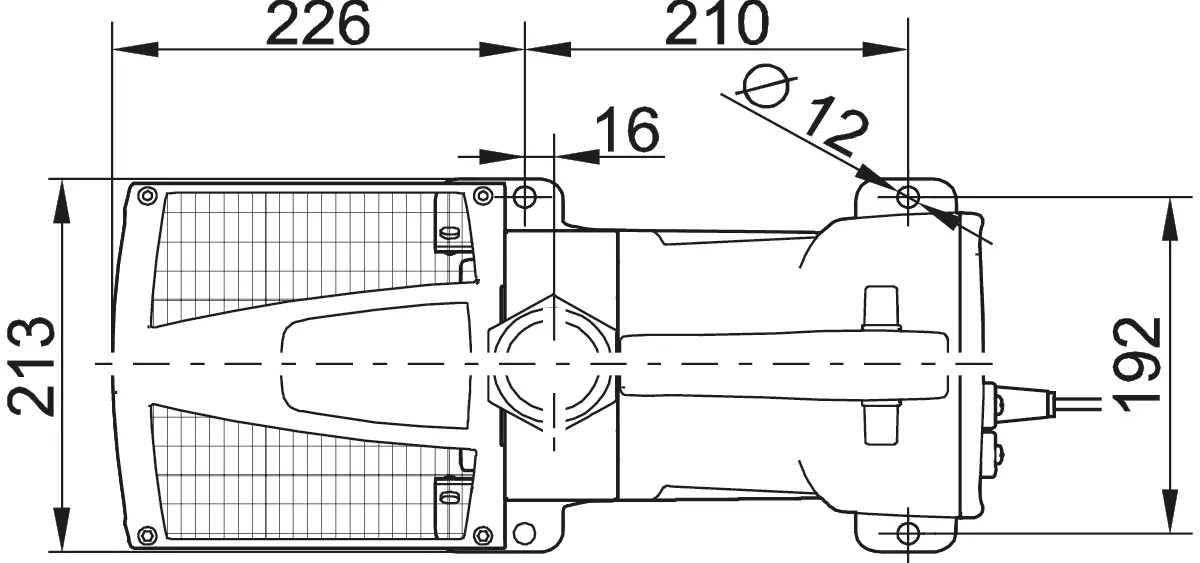

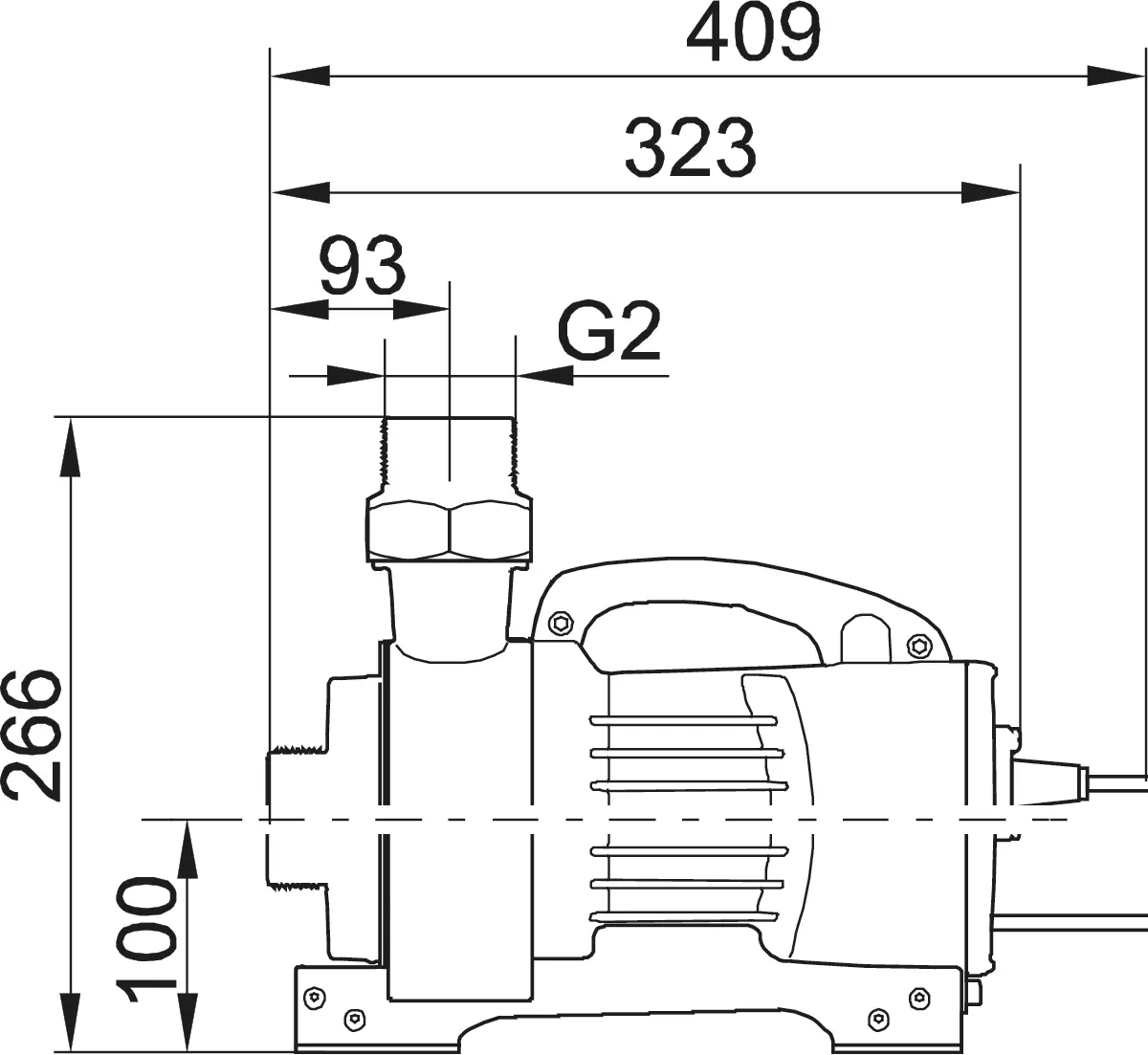

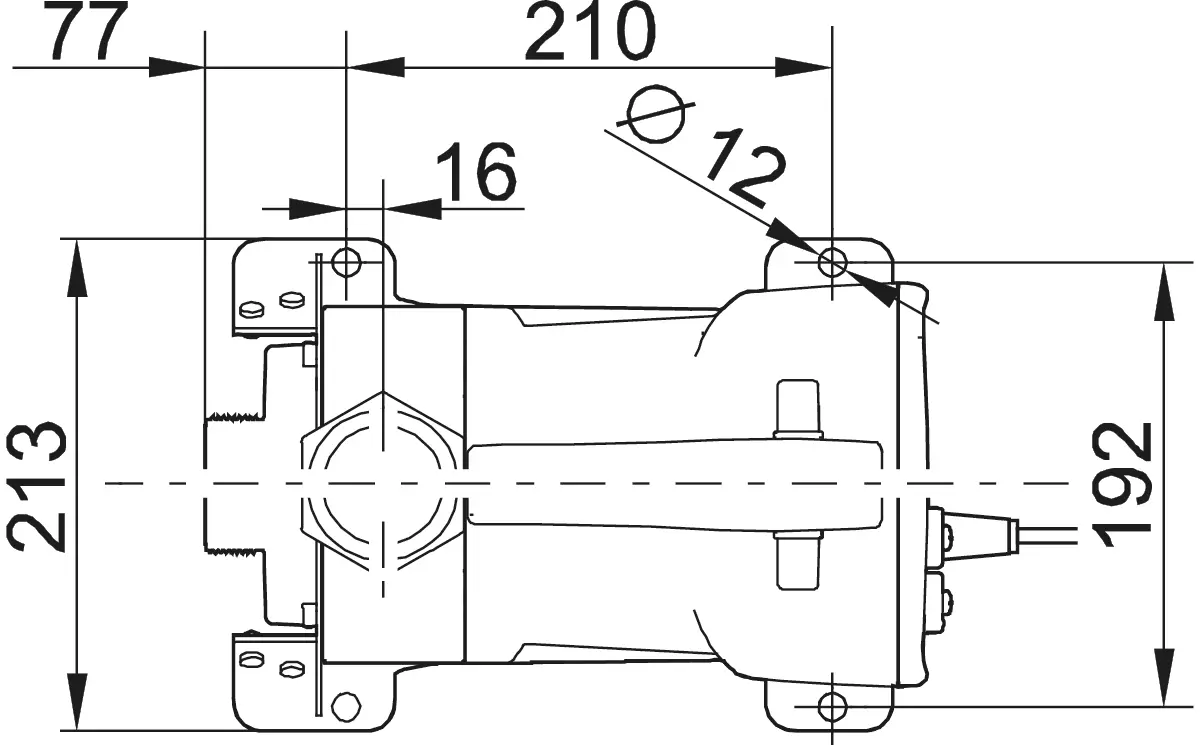

- Dimensions (L × W × H)
- 486 × 213 × 266
- mm
- Material
- Plastic / Stainless steel 1.4301 (AISI 304)
- Net weight
- 11.54
- kg
