Floating Fountain Illumination

LED Modul AirFlo/Midi/Maxi w Add-on

SKU: 96639

Zobacz inne produkty z tej rodziny

Przeglądaj rodzinę produktów
The add-on set expands existing LED modules with three warm white ProfiLux Basic LED L W Spot/01 spotlights. Each spotlight delivers 735 lumens with an 11° beam angle, providing precise and even illumination. Robust stainless steel brackets with fine adjustment ensure easy and secure installation.
The set includes a power connection box and a 1-meter connecting cable with a patented waterproof connector for reliable operation. Temperature-controlled high quality LEDs guarantee a lifespan of up to 50,000 hours.
Thanks to optimal weight distribution, the spotlights are available in sets of three, allowing modules to be operated with 3, 6, or 9 spotlights, offering flexible and atmospheric warm white lighting for fountain installations.

Szczegóły funkcji

  • Atmospheric lighting effect – Warm white light elegantly highlights AirFlo, Midi, and Maxi floating fountains.

  • Easy expansion of existing LED modules with three additional warm white ProfiLux LED spotlights for AirFlo, Midi and Maxi floating fountains.

  • Standard module sizes – Optimally weighted sets of 3, expandable to 6 or 9 spotlights for larger floating fountains.

  • Intense light output – 735 lumens per spotlight with a 11° beam angle for precise, brilliant illumination.

  • Energy efficiency – Modern LED technology delivers high light output with low energy consumption.

  • Robust construction – Stainless steel brackets with fine adjustment for precise and long-lasting alignment.

  • Secure connection – 1 m connecting cable with patented waterproof connector.

  • High-quality technology – Power connection box ensures safe operation of the additional modules.

1 of 2

Specyfikacje

    Zestawienie specyfikacji

    Luminous flux withe
    2205
    lm
    Colour temperature LED white
    3000 (± 200)
    K
    Colour rendering index (CRI)
    90
    %

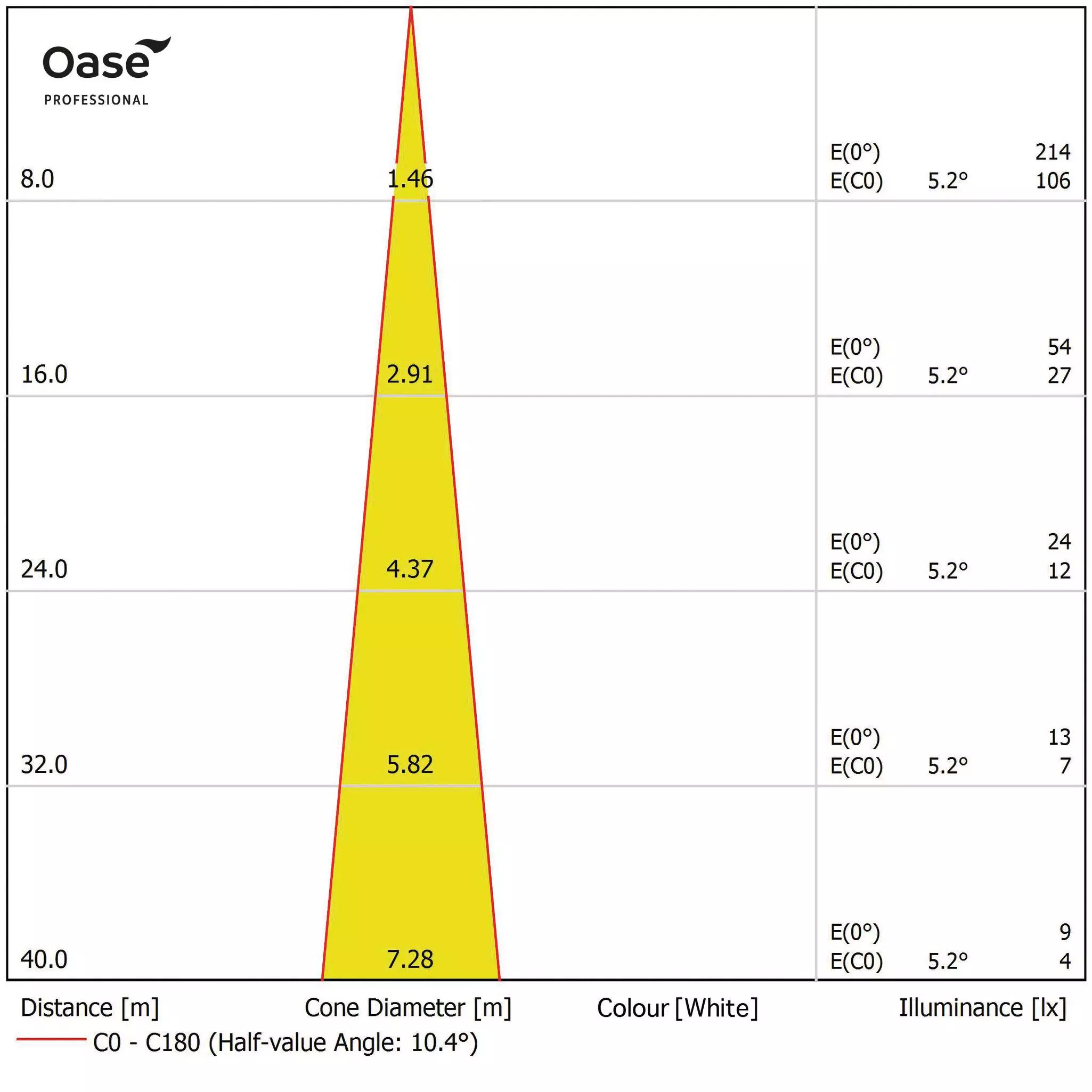

    Beam angle
    11 Degrees (± 2)
    Luminous flux with all on
    2205
    lm
    Rated voltage
    24 V / DC
    Power consumption
    72
    W
    Rated current
    3
    A
    Dim frequency
    2800
    Hz
    Power connection type
    24 V DC plug
    Power cable length
    50.00
    m
    Protection class
    IP68; 2 m
    Dimensions (Ø × H)
    140 × 88
    mm
    Material
    Stainless steel 1.4301 (AISI 304)
    Net weight
    8.3
    kg
    Stroboscope effect
    No

    Pliki do pobrania

    • Product instructions
    • Product instructions
    • Product data sheet
    • 3D drawing
    • 2D drawing
