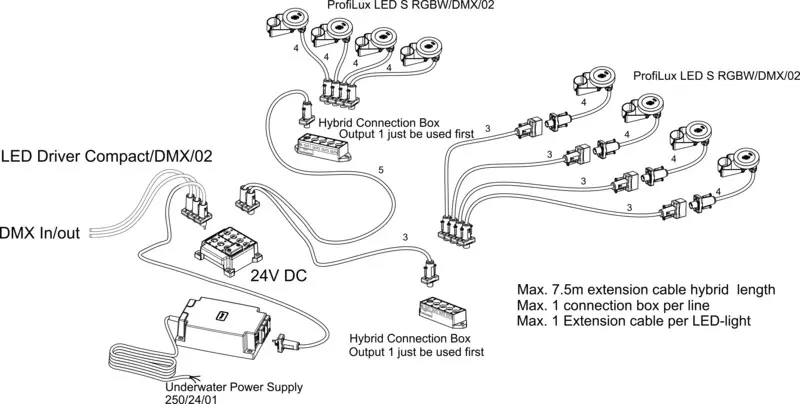

The coloured LED light comes with high quality, robust stainless steel housing for fresh water, pool water and sea water. The flat surface prevents deposition of dirt. These LED lights have a temperature regulation so that wet and dry installation is possible. The temperature controlled high-class brand LED has a lifetime up to 100,000 hours.* The brightness of the basic colors of the LED RGBW lights are measured individually. The Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.

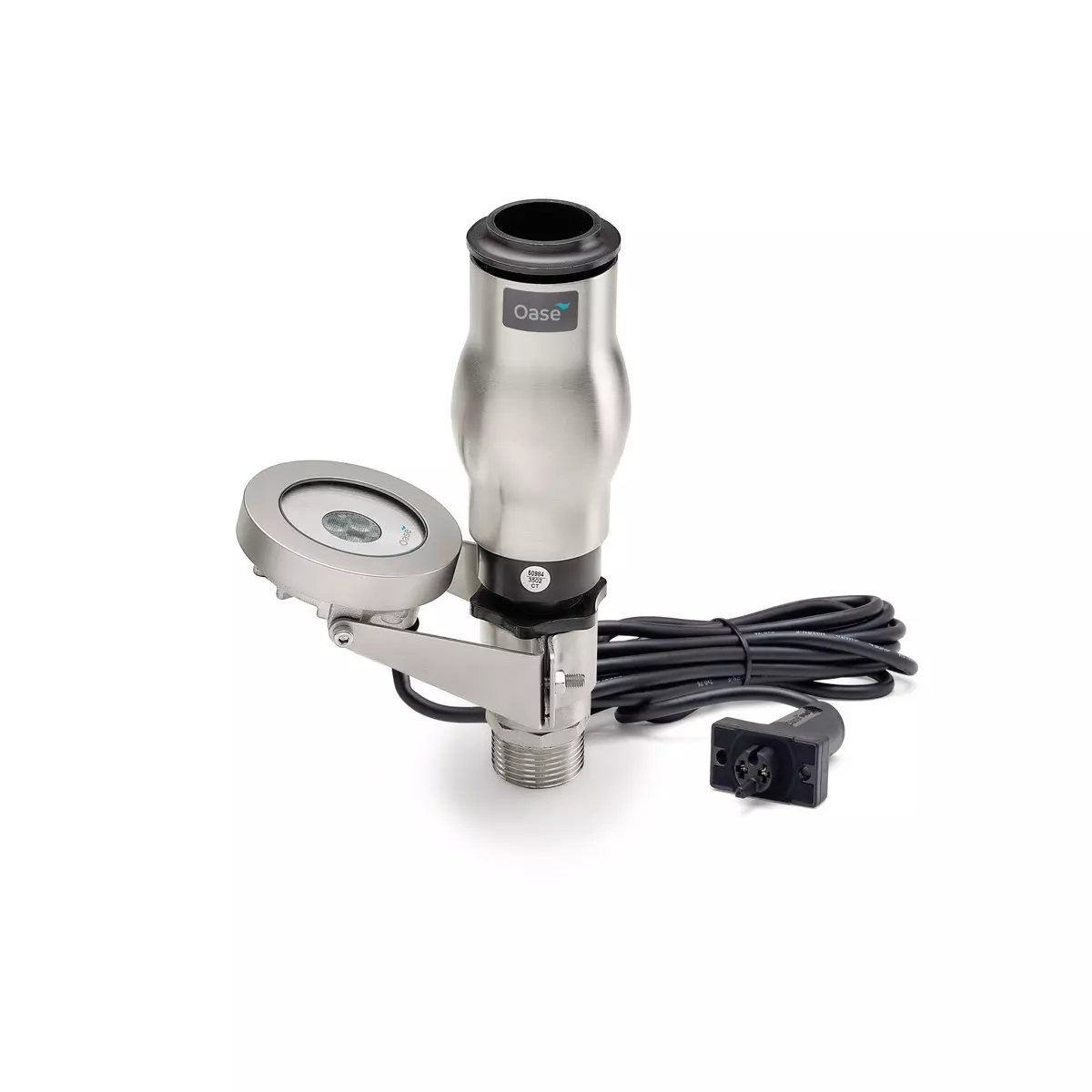

The ProfiLux LED S RGBW /DMX/02 is the powerful, robust S-Size RGBW-LED light with a holder and a beam angle of 25°, 407 lumens.
The ProfiLux LED S RGBW /DMX/02 is the powerful, robust S-Size RGBW-LED light with a holder and a beam angle of 25°, 407 lumens.
Podrobnosti o funkcích
Slide 1 of 4
1 of 4
Slide 1 of 2
1 of 2
Specifikace
Specification breakdown
- Luminous flux withe
- 130
- lm
- Certificate
- Dekra US + C
- Colour temperature LED white
- 4000 (± 200)
- K
- Number of DMX channels
- 6
- Units
- DMX Channel 1
- red
- Beam angle
- 25 Degrees (± 2)
- DMX Channel 2
- green
- Rated voltage
- 24 V / DC
- DMX Channel 3
- blue
- Power consumption
- 13.3
- W
- DMX Channel 4
- strobe
- DMX Channel 5
- dimmable
- Weighted energy consumption
- 14.3
- kWh/1000h
- Rated current
- 0.59
- A
- Luminous flux with all on
- 407
- lm
- Dim frequency
- 2800
- Hz
- Luminous flux red
- 83
- lm
- Power connection type
- Hybrid plug
- Luminous flux green
- 148
- lm
- Power cable length
- 1.00
- m
- Protection class
- IP68; 4 m
- Luminous flux blue
- 46
- lm

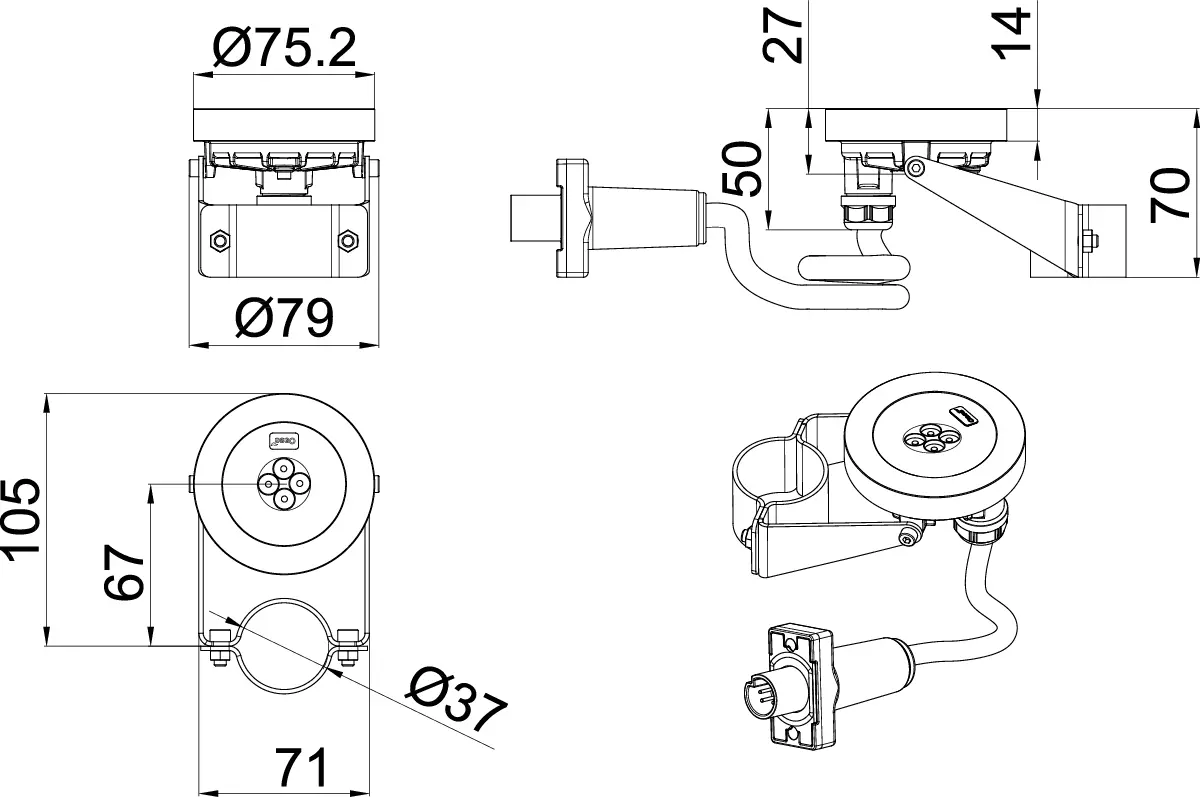

- Dimensions (Ø × H)
- 75 × 70
- mm
- Material
- Stainless steel 1.4404 (AISI 316L)
- Net weight
- 0.686
- kg
- Stroboscope effect
- 0-25 Hz
Ke stažení
- 3D drawing
- 2D drawing
- 2D drawing
- Product instructions
- Product data sheet
