ProfiPlane LED L RGBW Spot /DMX/02
SKU: 91290
View other products in the family

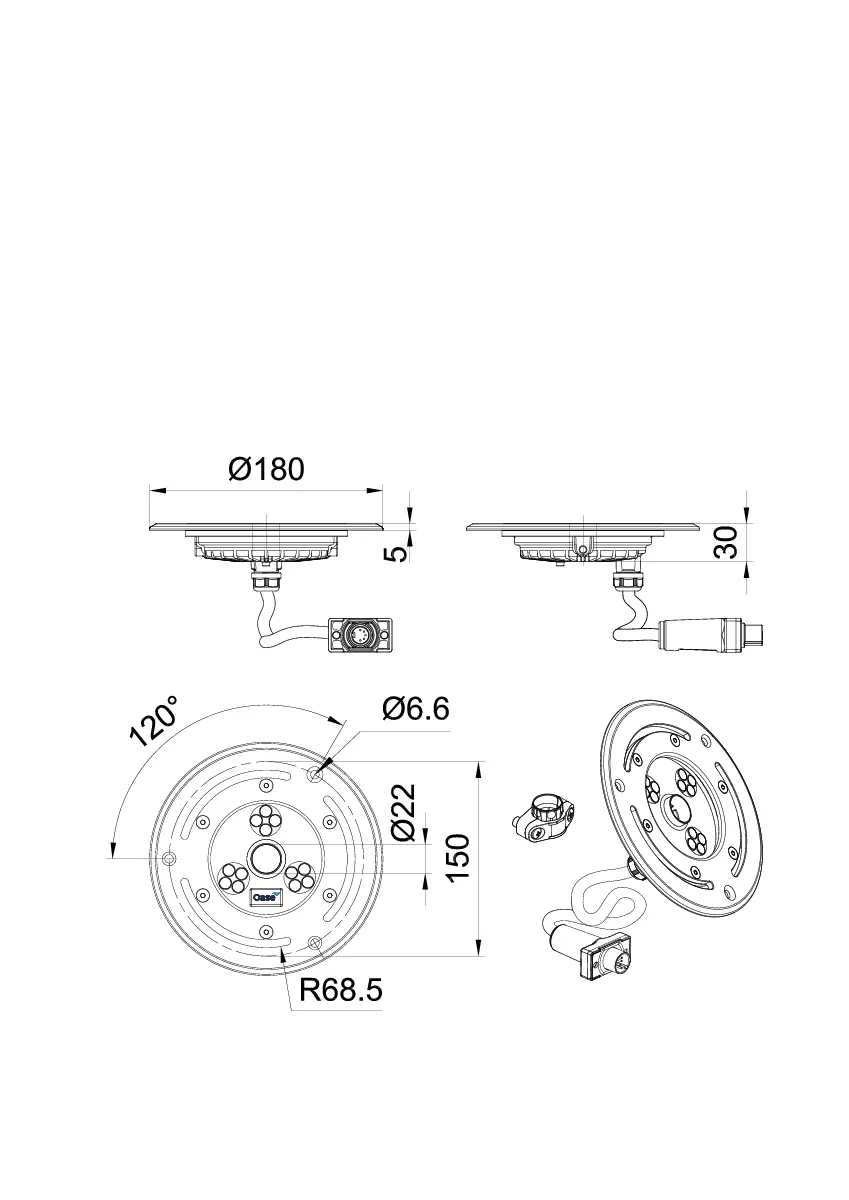

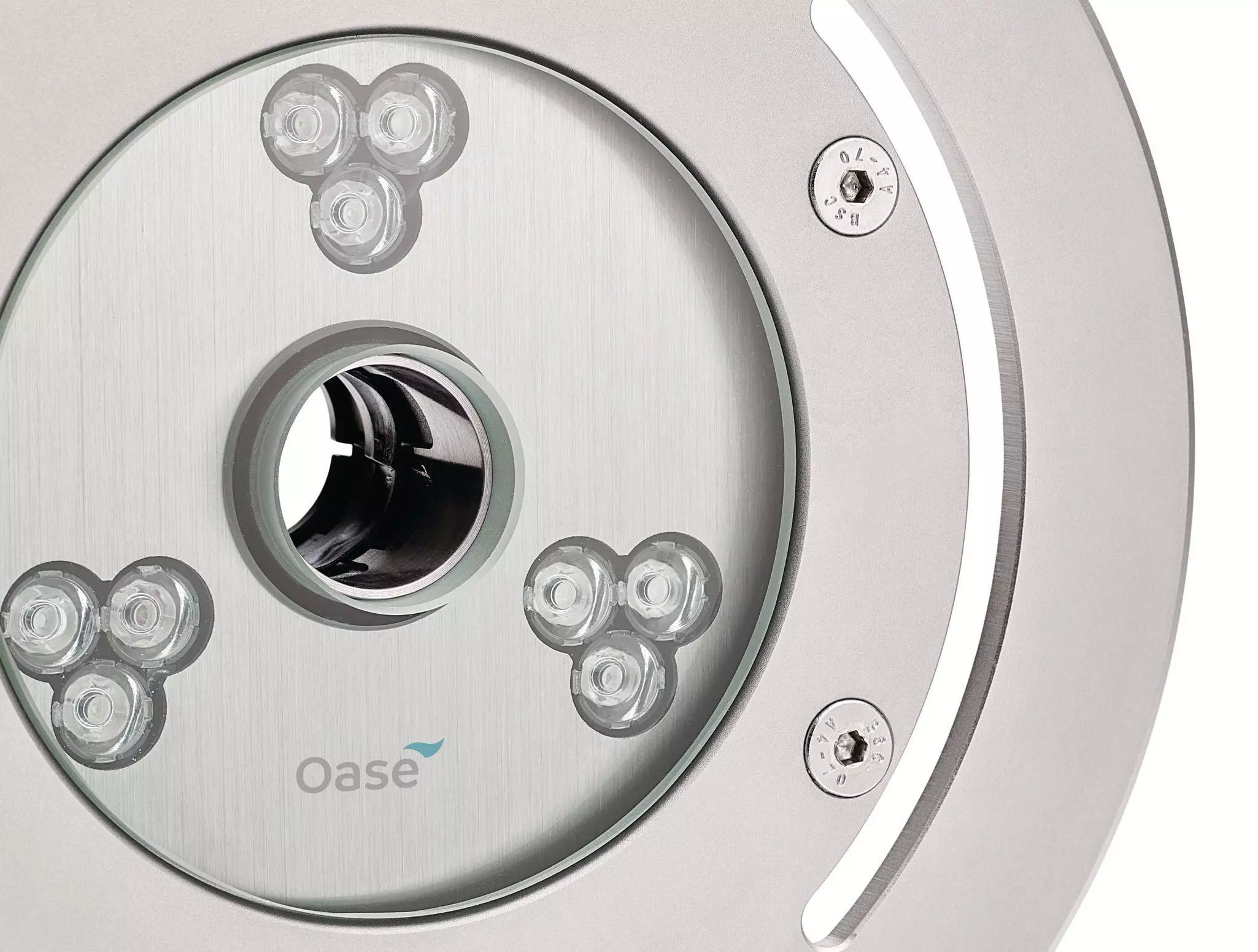

The ProfiPlane LED L RGBW Spot /DMX/02 is the powerful, robust RGBW-LED light with flange and hole D=22 mm and a beam angle of 16°, 1228 lumens.The LED light is suitable for ground installation and are traversable up to 1.5 t.

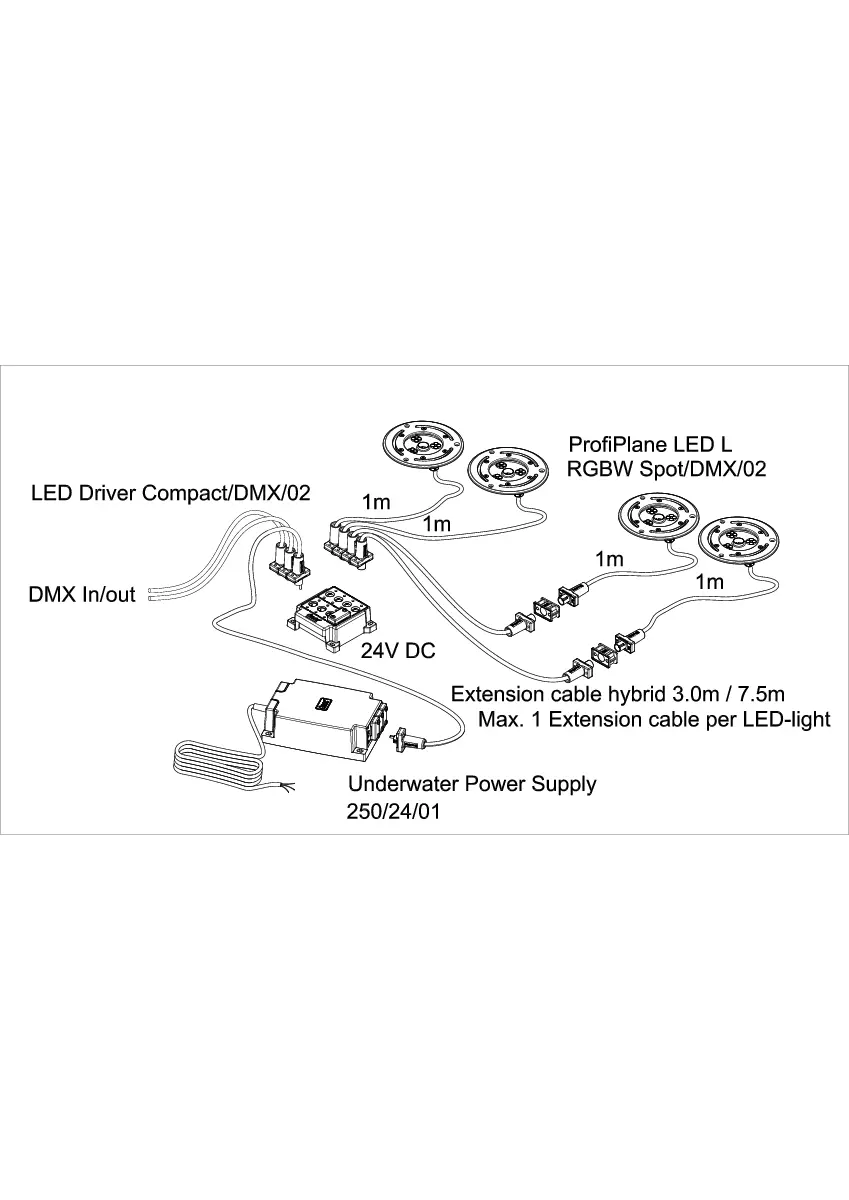

The coloured LED light comes with high quality, robust stainless steel housing for fresh water, pool water and sea water. The flat surface prevents deposition of dirt. These LED lights have a temperature regulation so that wet and dry installation is possible. The temperature controlled high-class brand LED has a lifetime up to 100,000 hours.* The brightness of the basic colors of the LED RGBW lights are measuredindividually. The Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.
The coloured LED light comes with high quality, robust stainless steel housing for fresh water, pool water and sea water. The flat surface prevents deposition of dirt. These LED lights have a temperature regulation so that wet and dry installation is possible. The temperature controlled high-class brand LED has a lifetime up to 100,000 hours.* The brightness of the basic colors of the LED RGBW lights are measuredindividually. The Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.
Podrobnosti o funkcích
Slide 1 of 2
1 of 2
Slide 1 of 3
1 of 3
Specifikace
Specification breakdown
- Certificate
- Dekra US + C
- Number of DMX channels
- 6
- Units
- DMX Channel 1
- red
- DMX Channel 2
- green
- DMX Channel 3
- blue
- DMX Channel 4
- strobe
- DMX Channel 5
- dimmable
- Luminous flux with all on
- 1228
- lm
- Luminous flux red
- 240
- lm
- Luminous flux green
- 460
- lm
- Luminous flux blue
- 137
- lm
- Luminous flux withe
- 391
- lm
- Beam angle
- 16 Degrees (± 2)
- Stroboscope effect
- 0-25 Hz
- Weighted energy consumption
- 31.2
- kWh/1000h
- Rated voltage
- 24 V / DC
- Power consumption
- 28
- W
- Rated current
- 1.27
- A
- Dim frequency
- 2800
- Hz
- Power connection type
- Hybrid plug
- Power cable length
- 1.00
- m
- Protection class
- IP68; 4 m
- Dimensions (Ø × H)
- 180 × 30
- mm
- Material
- Stainless steel 1.4404 (AISI 316L)
- Net weight
- 1.6
- kg
Ke stažení
- 3D drawing
- 2D drawing
- 2D drawing
- 2D drawing
- Product instructions
- Product data sheet
