SplashKit LED XL RGrBW recessed /DMX/02

SKU: 84882

View other products in the family

The SplashKit LED XL RGBW recessed /DMX/02 is the ideal choice if you prefer an installation mounted flush to the ground. This also enables the perfect scene-setting for your unique, clear water patterns. With dark royal blue, green, red and a neutral white 4000 K white, the spotlight offers an almost unlimited colour spectrum with outstanding radiance. Uniformly calibrated LEDs ensure a homogeneous and professional colour image – i.e. each individual spotlight emits exactly the same colour values. And this is maintained over a long period: Thanks to intelligent heat management, the quality LEDs have a service life of up to 100,000 hours*. The round spotlight is only suitable for the integrated SplashKit version and is therefore installed flush to the ground and protected from being walked over. As it rests directly on the installation container or on the supplied spacer ring, it can be loaded up to a maximum of 5 kN. The connection is made easily via the OASE ProNect system, and a fitting opening is provided for the Orb Nozzle. Thanks to DMX control, you can program impressive colour effects, while the RDM system provides feedback on the current operating status.

Podrobnosti o funkcích

  • Round recessed variant for floor-flush and non-slip installation in integrated design, loadable up to 5 kN

  • Homogeneous illumination of the fountain by uniformly calibrated LEDs

  • Almost unlimited color spectrum of dark royal blue, green, red and neutral white 4,000 K white

  • Easy installation via the patented OASE ProNect connector (0.5 m hybrid cable included with the LED)

  • Central opening for connecting the orb nozzle, drain openings for flowing water

  • Dmx/rdm-capable

    simple programming and the possibility to retrieve status information about the operation

  • Temperature-controlled, high-quality brand LEDs with a lifespan of up to 100,000 hours*

  • Perfectly combinable with all SplashKit components

Specifikace

    Specification breakdown

    Certificate
    Dekra US + C
    Number of DMX channels
    5
    Units
    Luminous flux with all on
    2511
    lm
    Luminous flux red
    720
    lm
    Luminous flux green
    1380
    lm
    Royal blue luminous flux
    411
    lm
    Luminous flux withe
    391
    lm
    Colour temperature LED white
    4000 (± 200)
    K
    Beam angle
    11 Degrees (± 2)
    Stroboscope effect
    0-25 Hz
    Weighted energy consumption
    77
    kWh/1000h
    Rated voltage
    24 V / DC
    Power consumption
    70
    W
    Rated current
    3.1
    A
    Dim frequency
    2800
    Hz
    Power connection type
    Hybrid socket
    Power cable length
    0.50
    m
    Protection class
    IP68; 4 m
    Dimensions (Ø × H)
    283 × 63
    mm
    Material
    Stainless steel 1.4571 (AISI 316Ti)
    Net weight
    6
    kg

    Ke stažení

    • Product instructions
    • Product data sheet
    • Bill of quantity

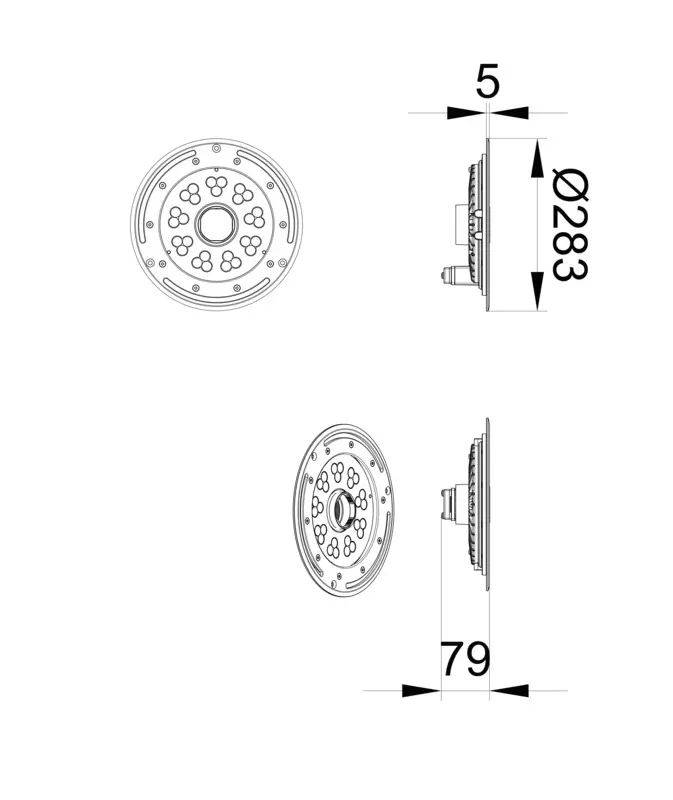

    • 2D drawing
    • 3D drawing
