NozzleChamber Vario
SKU: 50478
Andere producten in deze familie bekijken
Belangrijkste kenmerken
- Floor installation container for spotlights and/or nozzles
- Ideal for installation in open areas and multi-functional areas
- High-quality, robust stainless steel construction
Compact water installations – even without a large pool can be quickly and easily implemented your design ideas in free spaces. The underground niches Nozzle-Chamber Single and Nozzle-Chamber Vario, offer ideal conditions for the uncomplicated installation of attractive waterlight combinations without an open water surface. The Nozzle-Chamber Single is ideal for under – ground installation of the ProfiPlane LED L/DMX/02 or our Comet and Schaumsprudler fountain jets. With the Nozzle-Chamber Vario you can also easily install the Vario-Switch 010a under
Functiedetails
Recessed floor pots for the installation of LED spotlights and/or nozzles
Perfect for open areas and multifunctional areas
Suitable for ProfiPlane LED L spotlights and comet nozzle as well as a VarioSwitch, depending on the model
High-quality, robust stainless steel design
Easy and safe installation
Including three DA-110/DN-100 connectors and two end caps
Print connection G 1 including 90° angle
Specificaties
Specificaties
- Pressure-side connection
- 25
- mm
- Pressure-side connection
- 1"
- Connection
- 3 × Ø 110 mm / 3 × DN 110
- Material
- Stainless steel 1.4301 (AISI 304)
- Dimensions (L × W × H)
- 466 × 386 × 545
- mm
- Net weight
- 23
- kg
Downloads

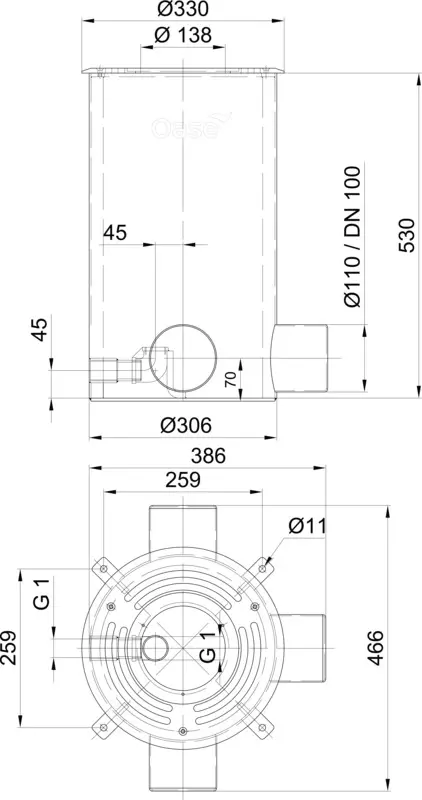

- 2D drawing
- Replacement list
- Product data sheet
- 3D drawing
- 2D drawing
