Orb Nozzle Stainless Steel - Comet 10 INT

SKU: 75184

Zobacz inne produkty z tej rodziny

Orb Nozzle Comet 10 is a high-quality stainless steel nozzle for ground installation that perfectly fits OASE LED spotlights and is the first choice for premium design and durability. The integrated water softener guarantees a fantastically clear and precise water pattern for an exhilarating comet effect. The Orb Nozzle fits perfectly on the nozzle connection of the OASE SplashCore water switch, to which it is simply fastened with three screws. The OASE-exclusive SplashKit multitool, which is available separately, helps to install and align the nozzle: This tool makes it possible to move the Orb Nozzle by 5° in any direction in order to produce a vertical water jet, for example, even on a slope. Replacing the nozzle inserts is very quick and easy too: The nozzle can be accessed directly from above without having to remove the entire effect unit. Four additional Orb Nozzles with different effects are available in the stainless steel version: Comet 12, Cluster, Vulcan 1 and Calyx provide fascinating and varied shows.

Szczegóły funkcji

  • 5° adjustable in all directions – e.g. for vertical beam even on a slope

  • Integrated water calmer for clear water image

  • Perfect in the system of the SplashKit and with water switch SplashCore

  • Nozzle for floor installation, almost completely integrated into the ground

  • Alignment of the ball inserts as well as their cleaning and replacement easily and quickly with the separately available SplashKit multitool

  • Included in the scope of delivery of the orb nozzle (77879)

    robust anthracite-coloured plastic version with six effect inserts

  • Sold separately

    high-quality stainless steel versions in five single-effect versions

  • Perfect lighting by mounting in OASE LED spotlights – either SplashKit LED XL RGrBW, ProfiPlane LED XL RGB Spot or ProfiRing LED XL RGB Spot

  • Various effects possible

    Comet 10, Comet 12, Cluster, Vulcan 1-stage or 2-step as well as Chalice

Specyfikacje

    Zestawienie specyfikacji

    Dimensions (Ø × H)
    69 × 105
    mm
    Material
    Plastic / Stainless steel 1.4301 (AISI 304)
    Net weight
    0.675
    kg

    Pliki do pobrania

    • 3D drawing

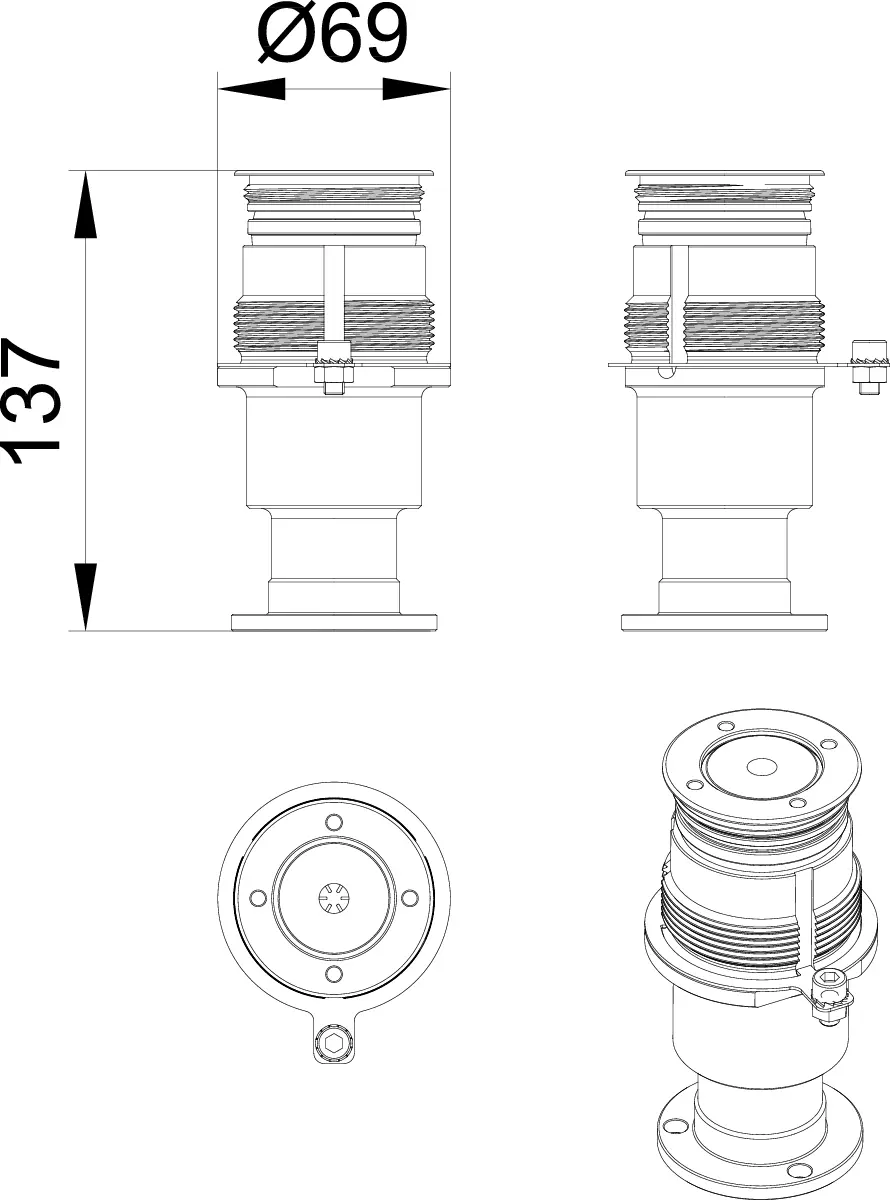

    • 2D drawing
    • Bill of quantity
    • Product data sheet
