VarioMaster L Move /DMX/02

SKU: 92589

Zobacz inne produkty z tej rodziny

As a combination of the VarioMaster L and the familiar Multi Directional Drive effect drive system, the VarioMaster L Move goes one step further. This is because it combines a motorised fountain nozzle with a controlled, highly dynamic effect drive – the water jet opens and closes and is simultaneously swivelled in all directions. The resulting water patterns are characterised by an enormous variety of movement and create unprecedented water patterns. Controlled by the OASE WECS III show controller, fascinating choreographies can be created with the different water effects – the mixture of light, speed and opening of the water jet as well as the dynamic movement in all directions make unforgettable fountain shows possible. With the new VarioMaster L Move, the VarioMaster L fountain nozzle, which is driven by a motor (24 V DC), is permanently mounted on the head of the effect drive and can create even more innovative and fascinating water effects with the new effect rings and the EffectCap. Connected to a separately available DMX-controllable Varionaut pump, the VarioMaster L Move can also generate the fountain heights and widths of the individual water patterns steplessly. When pausing, the VarioMaster L Move can assume a parking position in which it remains invisible under the surface of the water. The additional LED RGBW module – LED module VM MDD L /DMX/02 (92770), which already contains an LED driver and cable, provides the special lighting effects in combination with the dynamic effects of the VarioMaster L Move. The high-quality stainless steel finish allows the VarioMaster to be used in all types of water – fresh, pool or sea water. The VarioMaster L Move is also connected to 24 V DC and DMX in a water basin with IP68 waterproofing via the patented ProNect underwater plug connection. "

Szczegóły funkcji

  • Combination of motorised fountain nozzle VarioMaster L and dynamic effect drive for extraordinary, highly dynamic fountain effects and water patterns

  • Precise, pinpoint changes and smooth transitions between the different water choreographies – controlled by the OASE WECS III show controller

  • Compatible for connection to commercially available centrifugal pumps or controllable OASE pumps

  • Waterproof connection (IP68) to 24V DC and DMX via patented ProNect underwater plug connection

  • Also suitable for use in salt water – thanks to high-quality workmanship with durable stainless steel

  • Available separately

    RGBW LED module VM-MDD L (92770)

1 of 4

Specyfikacje

    Zestawienie specyfikacji

    Number of DMX channels
    12
    Units
    DMX Channel 1 x axe
    Position
    DMX Channel 2 x axe
    Fine
    DMX Channel 3 x axe
    Speed
    DMX Channel 4 x axe
    Function
    DMX Channel 1 y axe
    Position
    DMX Channel 2 y axe
    Fine
    DMX Channel 3 y axe
    Speed
    DMX Channel 4 y axe
    Function
    DMX Channel 1 rotation
    Position
    DMX Channel 2 rotation
    Fine
    DMX Channel 3 rotation
    Speed
    DMX Channel 4 rotation
    Function
    Max. operating pressure
    3.5
    bar
    Water level min.
    450
    mm
    Waterlevel max.
    650
    mm
    Waterlevel Parking Position
    650
    mm
    Swing Range - Factory
    140/140
    °
    Swing Range - adjustable
    200/140
    °
    Swing Speed max.
    72.00
    °/sec.
    Rotation Speed max.
    720.00
    °/sec.
    Pressure-side connection
    2 ½"
    Power consumption
    79
    W
    Rated voltage
    24 V / DC
    Rated current
    3.3
    A
    Dimensions (L × W × H)
    840 × 542 × 857
    mm
    Net weight
    87
    kg

    Pliki do pobrania

    • 3D drawing

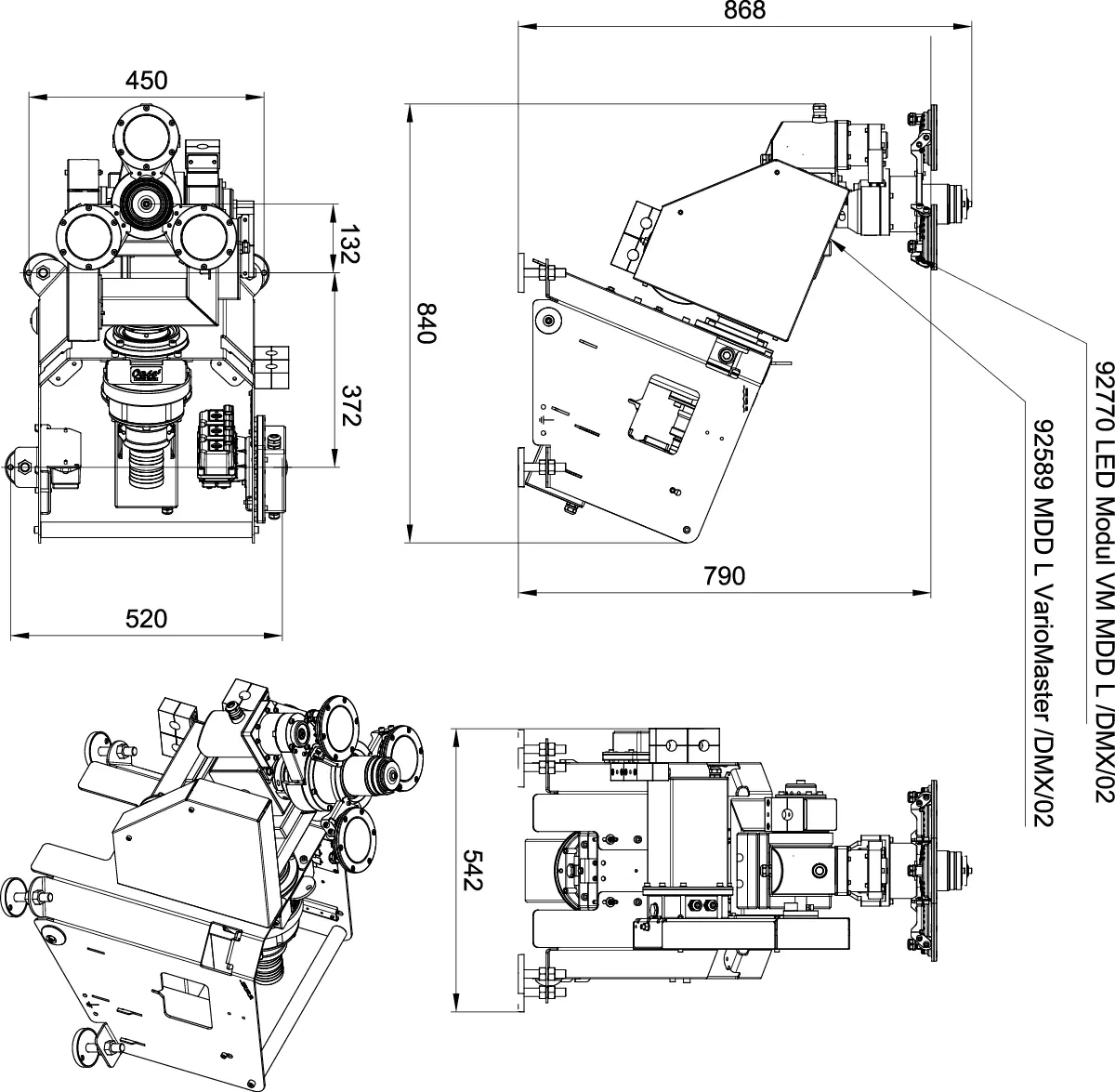

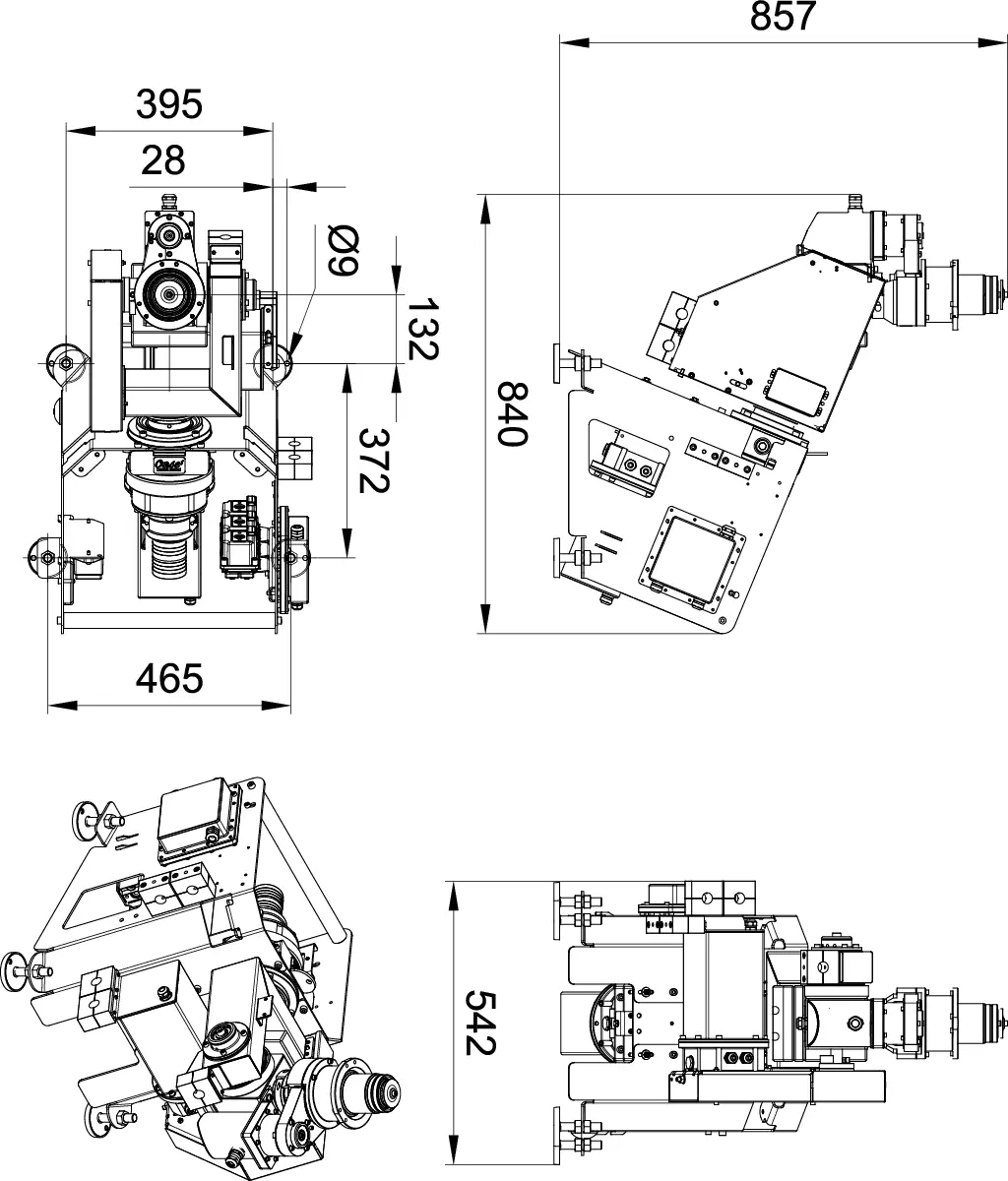

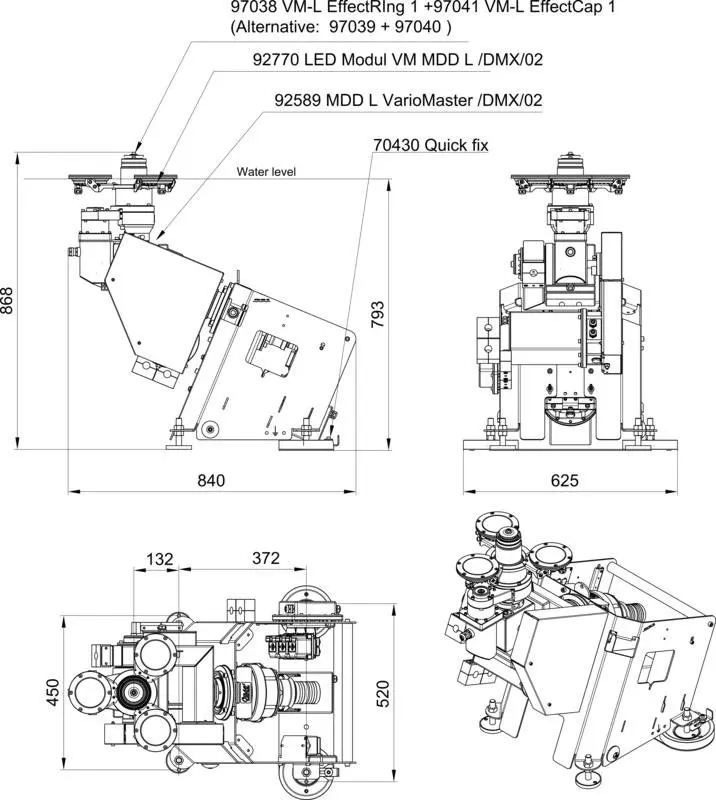

    • 2D drawing
    • 2D drawing
    • Product instructions
    • Product data sheet
