Fan Jet 10 - 6 E INT
View other products in the family
Key features
- Fan-shaped gush of water
- Modern stainless steel look
- Stainless steel nozzle
Depending on the installation the fan nozzles generate either a vertically ascending water veil, or a diagonally spouting water veil of 6 or 8 mm in thickness. Thanks to its large surface area the attractive water pattern can conceal a foundation base, or exposed pipe and pump equipment from the eyes of observers. The nozzles work independently of the water level and require a throttlez valve to regulate the water pattern.
Feature Details
The Model 30 - 11 E creates water walls of up to 9 m high and 27.6 m wide
Perfect as a projection surface for projector and laser shows and for use with the effect unit Multi Directional Drive XL 3D /DMX/02 and Multi Directional Drive L 3D /DMX/02
Aesthetic, fan-shaped water veils
Depending on the installation direction of the nozzles, different water images are created, e.g. water veils or water gushes
A throttle device is required to adjust the water pattern
Modern, high-quality stainless steel look
Specifications
Specification breakdown

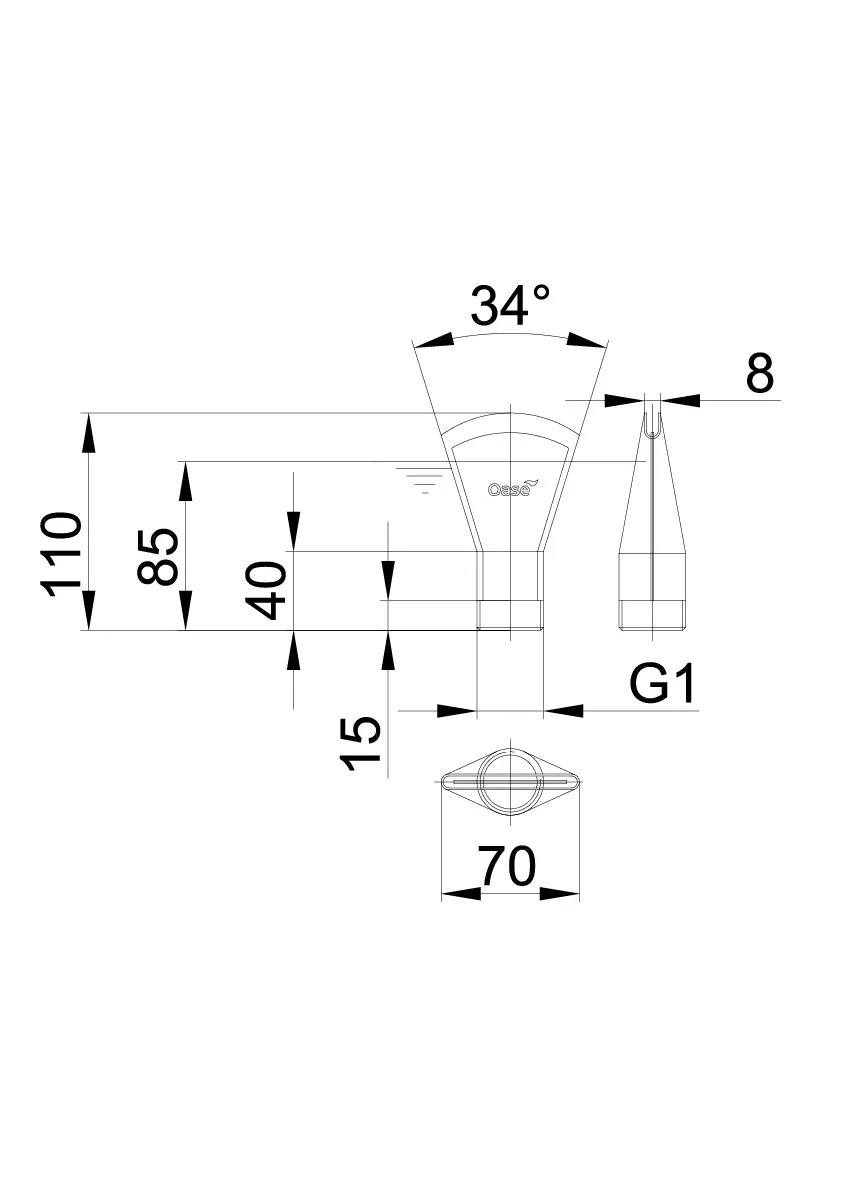

- Dimensions (L × W × H)
- 110 × 70 × 34
- mm
- Water film thickness
- 6.0
- mm
- Material
- Stainless steel 1.4571 (AISI 316Ti)
- Net weight
- 0.2
- kg
Downloads
- 2D drawing
- 3D drawing
- Replacement list
- Product data sheet
- Product instructions
- Bill of quantity
