Cable connectors are connecting and separating elements for electrical consumers in all areas of water technology. Consumers can be conveniently connected and disconnected – and thanks to OASE – even without draining the water!
The new junction box is a revolution in the field of underwater cable connectors: It is easy to install and offers many combination possibilities.
The junction box is available in 2 standard versions: The junction box 8/M20 contains 8 and the 14/M20 comes with 14 pieces of M20 cable glands.
Feature Details
Field-tested connecting and disconnecting links for electrical consumers in all areas of water technology
Maximum ease of connecting and disconnecting
With transparent lid for easy control of the connections
Highly corrosion-resistant
Including several blanking plugs for the cable glands that are not needed
Easiest maintenance
Quickly complete service work without much downtime
With 8 or 14 M20 cable glands
Specifications
Specification breakdown
- Number of cable glands
- 8 × M20
- Suitable for cable diameter
- 9 - 16
- mm
- Number of terminals
- 16
- Units
- Number of terminals for protective earth
- 5 (4 mm2)
- Dimensions (L × W × H)
- 264 × 261 × 112
- mm
- Material
- PET
- Net weight
- 3.1
- kg
Downloads

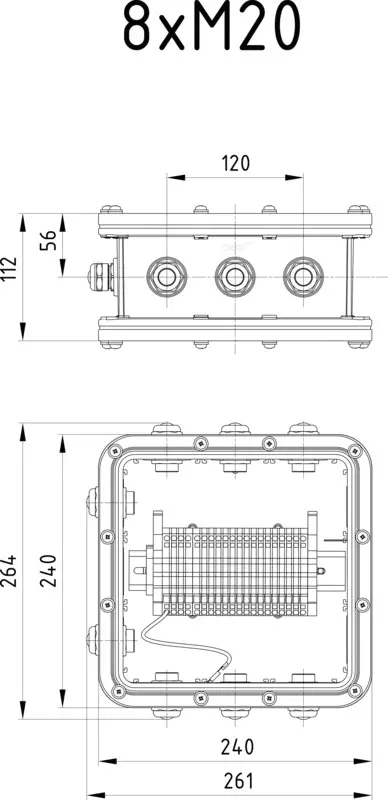

- 2D drawing
- 3D drawing
- Replacement list
- Product instructions
- Product data sheet
