Multi Directional Drive XL 2D /DMX/02 INT
SKU: 45076
View other products in the family
Individually controllable at unprecedented heights: The Multi Directional Drive XL 2D / DMX/02 is OASE's largest two dimensional drive and impresses with phenomenal and dynamic water effects at a fountain height of up to 30 m.
With a pivoting range of up to 180° on the X-axis and up to 165° on the Y-axis, the Multi Directional Drive XL (MDD XL 2D) is almost unlimited in its movement. This enables the creation of impressive water effects. A fountain height of up to
30 m can even be achieved with the Comet Prec 30 - 30 nozzle.

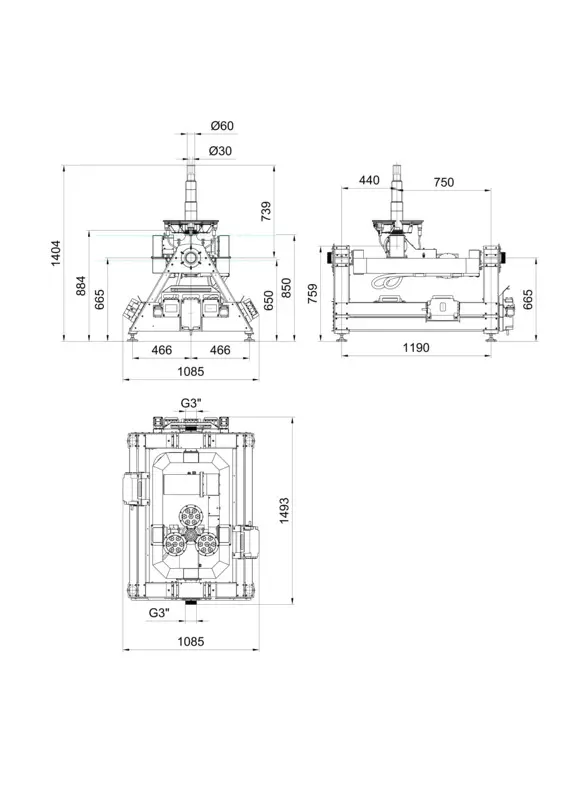

The innovative design of the MDD XL 2D enables the nozzle (Comet Prec 30 - 30) to be turned and folded back to its park / default position. The technology can be hidden completely under water at a water level of 850 mm. The maximum pivoting range at this level is 150° on both the X and Y axes.
With a pivoting range of up to 180° on the X-axis and up to 165° on the Y-axis, the Multi Directional Drive XL (MDD XL 2D) is almost unlimited in its movement. This enables the creation of impressive water effects. A fountain height of up to
30 m can even be achieved with the Comet Prec 30 - 30 nozzle.
The innovative design of the MDD XL 2D enables the nozzle (Comet Prec 30 - 30) to be turned and folded back to its park / default position. The technology can be hidden completely under water at a water level of 850 mm. The maximum pivoting range at this level is 150° on both the X and Y axes.
Feature Details
Robust stainless steel design
Suitable for fresh, pool and sea water
Individually controllable swivel drive with two axes in x and y direction for fountain heights up to 30 m, suitable for different nozzles
Wide range of motion
swivel range up to 180° on the x-axis and up to 165° on the y-axis for a water height of 650 mm
Default setting of 150° on the x and y axes for a water height of 850 mm
Practical parking position
Drive can be turned in completely below the water surface at a water height of 850 mm
Energy-efficient motor, 24 V DC
Control with DMX/RDM
Slide 1 of 3
1 of 3
Specifications
Specification breakdown
- Number of DMX channels
- 8
- Units
- DMX Channel 1 x axe
- Position
- DMX Channel 2 x axe
- Fine
- DMX Channel 3 x axe
- Speed
- DMX Channel 4 x axe
- Function
- DMX Channel 1 y axe
- Position
- DMX Channel 2 y axe
- Fine
- DMX Channel 3 y axe
- Speed
- DMX Channel 4 y axe
- Function
- Max. operating pressure
- 5
- bar
- Water level min.
- 650
- mm
- Waterlevel max.
- 850
- mm
- Waterlevel Parking Position
- 850
- mm
- Swing Range - Factory
- depending on the nozzle used
- °
- Swing Range - adjustable
- depending on the nozzle used
- °
- Swing Speed max.
- 60.00
- °/sec.
- Connection nozzles
- G 3 (internal thread)
- Pressure-side connection
- 2 × G 3 external thread
- Power consumption
- 530
- W
- Rated voltage
- 24 V / DC
- Rated current
- 22
- A
- Power cable length
- 10.00
- m
- Power connection type
- Power-Box 24 V DC /01
- DMX-RDM connection type
- DMX-Box /01
- Protection class
- IP68

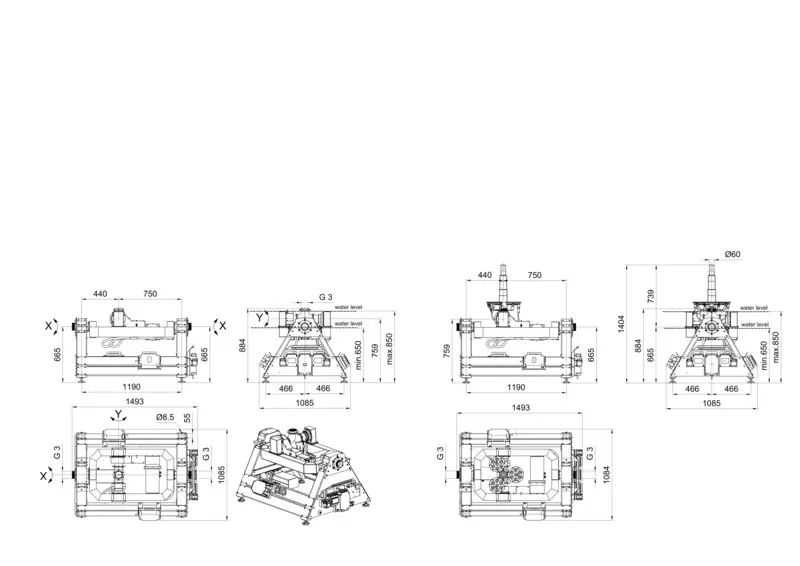

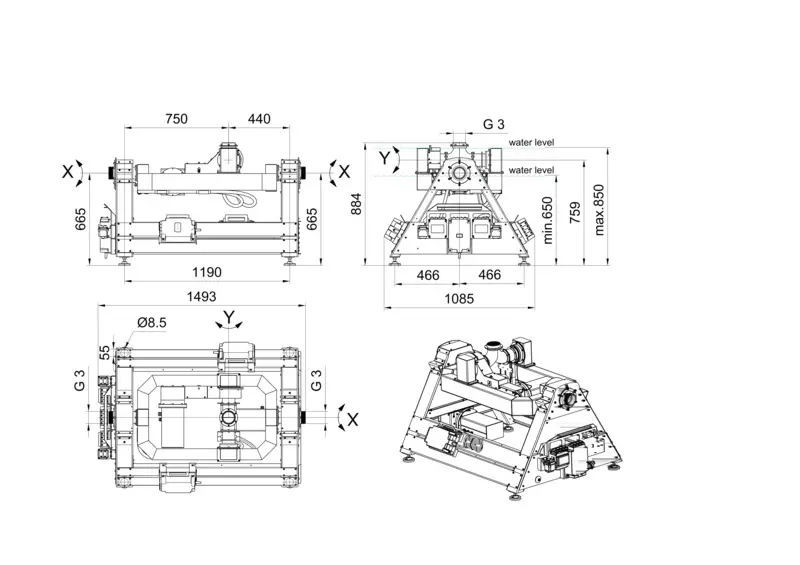

- Dimensions (L × W × H)
- 1493 × 1085 × 884
- mm
- Material
- Stainless steel 1.4571 (AISI 316Ti)
- Net weight
- 242
- kg
