ProfiLux LED L RGB Spot /DMX/02 INT
SKU: 36088
View other products in the family
The ProfiLux LED L RGB Spot /DMX/02 is the powerful, robust RGB-LED light with a holder and a beam angle of 11°, 837 lumens.
The coloured LED light comes with high quality, robust stainless steel housing for fresh water, pool water and sea water. The flat surface prevents deposition of dirt. These LED lights have a temperature regulation so that wet and dry installation is possible. The temperature controlled high-class brand LED has a lifetime up to 100,000 hours.* The brightness of the basic colors of the LED RGB lights are measuredindividually. The Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.
The coloured LED light comes with high quality, robust stainless steel housing for fresh water, pool water and sea water. The flat surface prevents deposition of dirt. These LED lights have a temperature regulation so that wet and dry installation is possible. The temperature controlled high-class brand LED has a lifetime up to 100,000 hours.* The brightness of the basic colors of the LED RGB lights are measuredindividually. The Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.
Feature Details
Galvanic isolation between DMX and 24 V DC
Powerful RGB LED spotlight for wet and dry installation with homogeneous coloured illumination by uniformly calibrated LEDs
High-quality stainless steel housing with robust bracket and fine adjustment
Temperature-controlled, high-quality brand LEDs with a lifespan of up to 100,000 hours*
Level Stepped Glass Surface Prevents Deposits
Waterproof according to IP68 up to 4 m water depth
1 m cable length with patented waterproof OASE ProNect connector

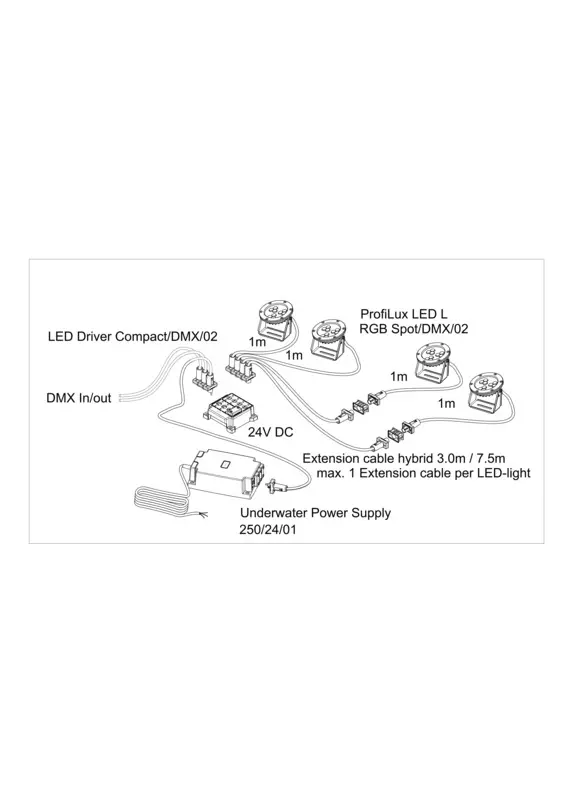

DMX/RDM-capable with the Underwater LED-Driver Compact/DMX/02, dimmable, perfect for strobe effects
Slide 1 of 5
1 of 5
Slide 1 of 6
1 of 6
Specifications
Specification breakdown
- Certificate
- Dekra US + C
- Number of DMX channels
- 5
- Units
- DMX Channel 1
- red
- DMX Channel 2
- green
- DMX Channel 3
- blue
- DMX Channel 4
- strobe
- DMX Channel 5
- dimmable
- Luminous flux with all on
- 837
- lm
- Luminous flux red
- 240
- lm
- Luminous flux green
- 460
- lm
- Luminous flux blue
- 137
- lm

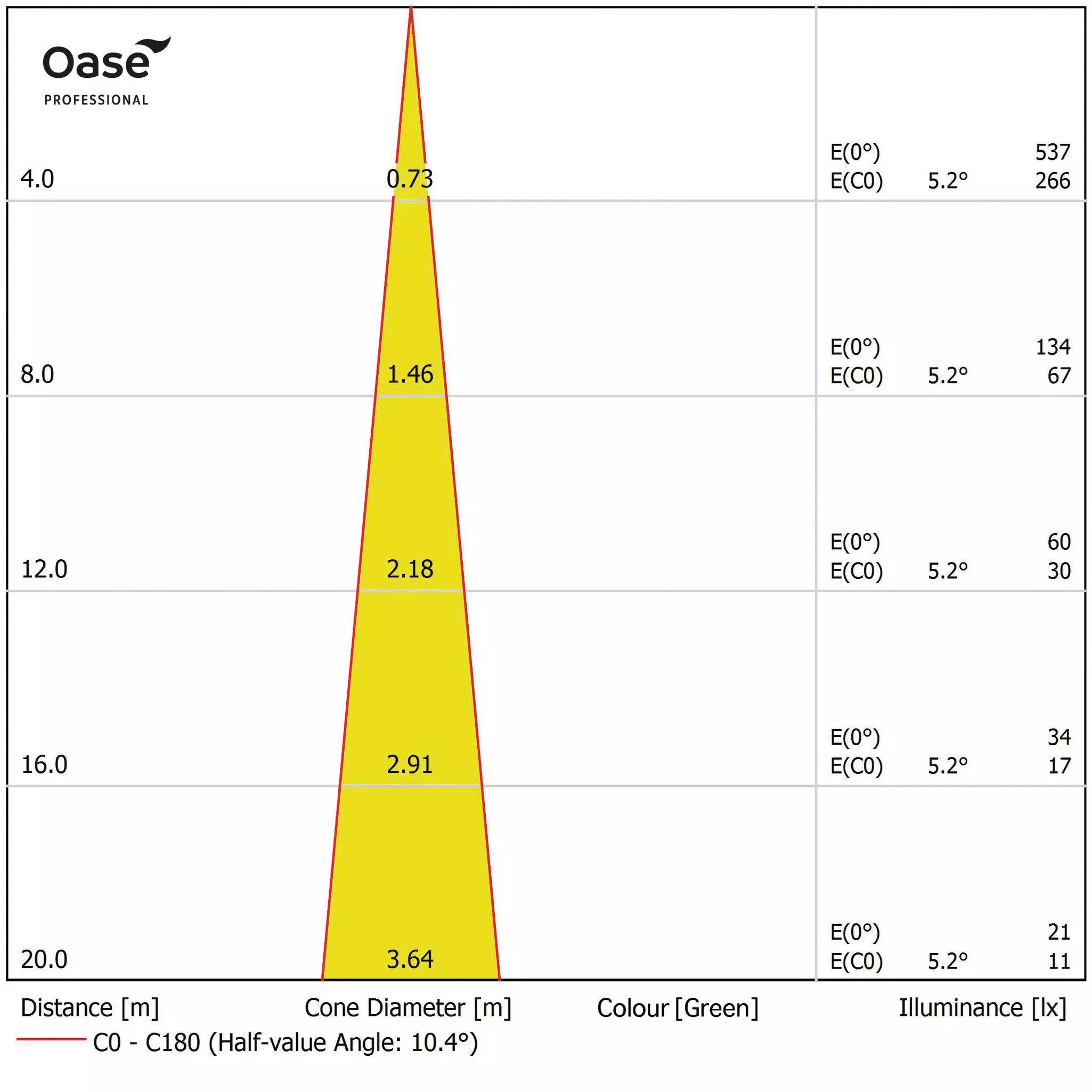

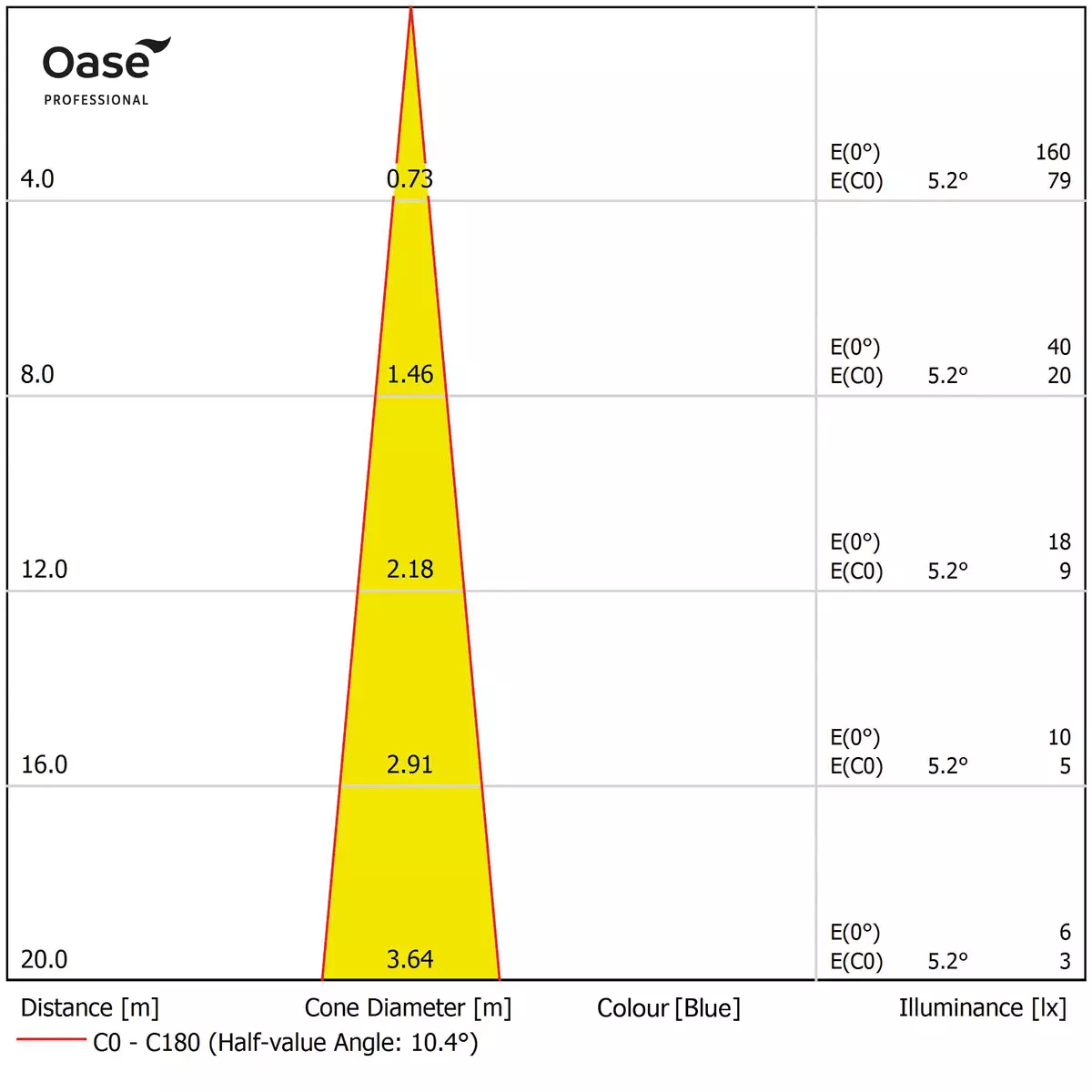

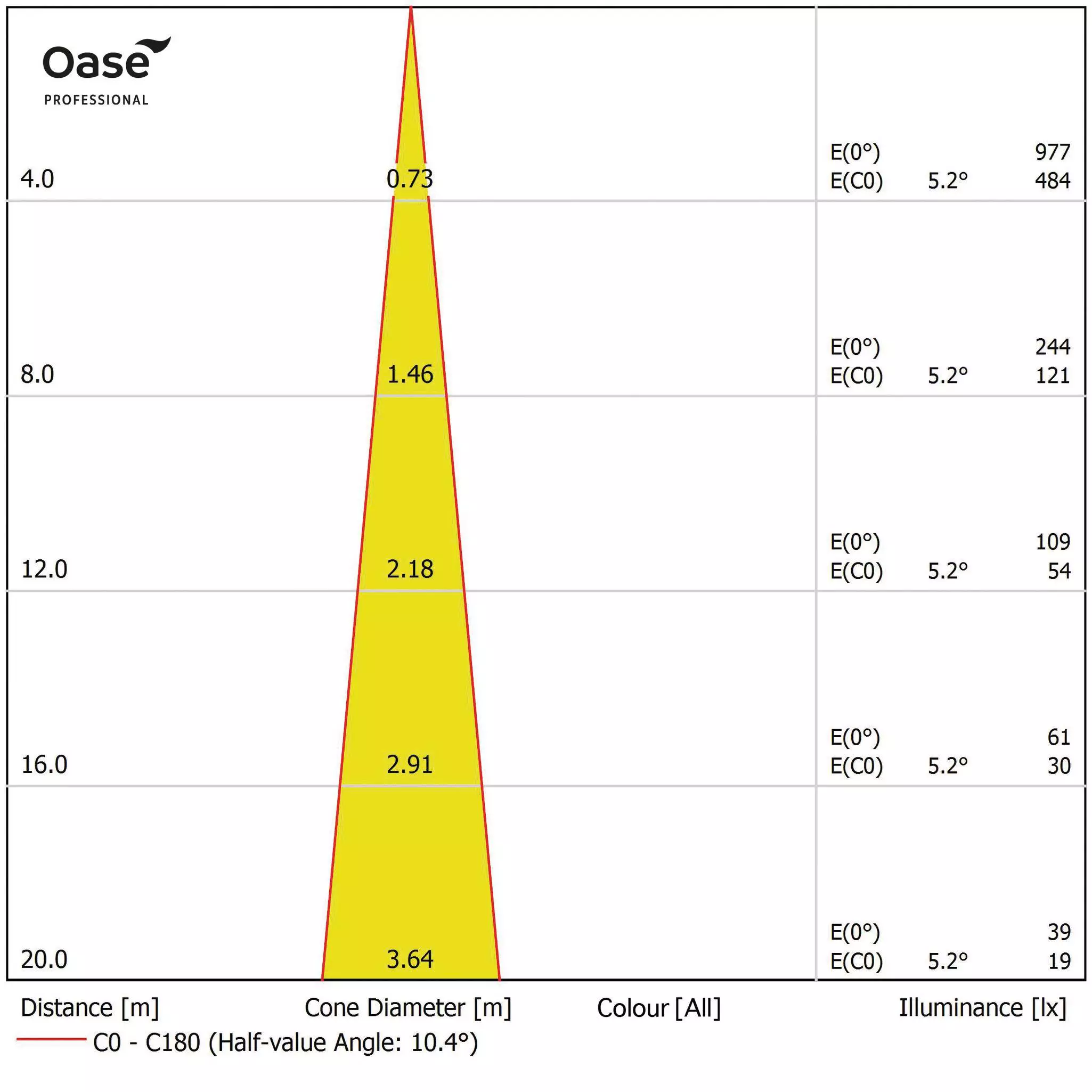

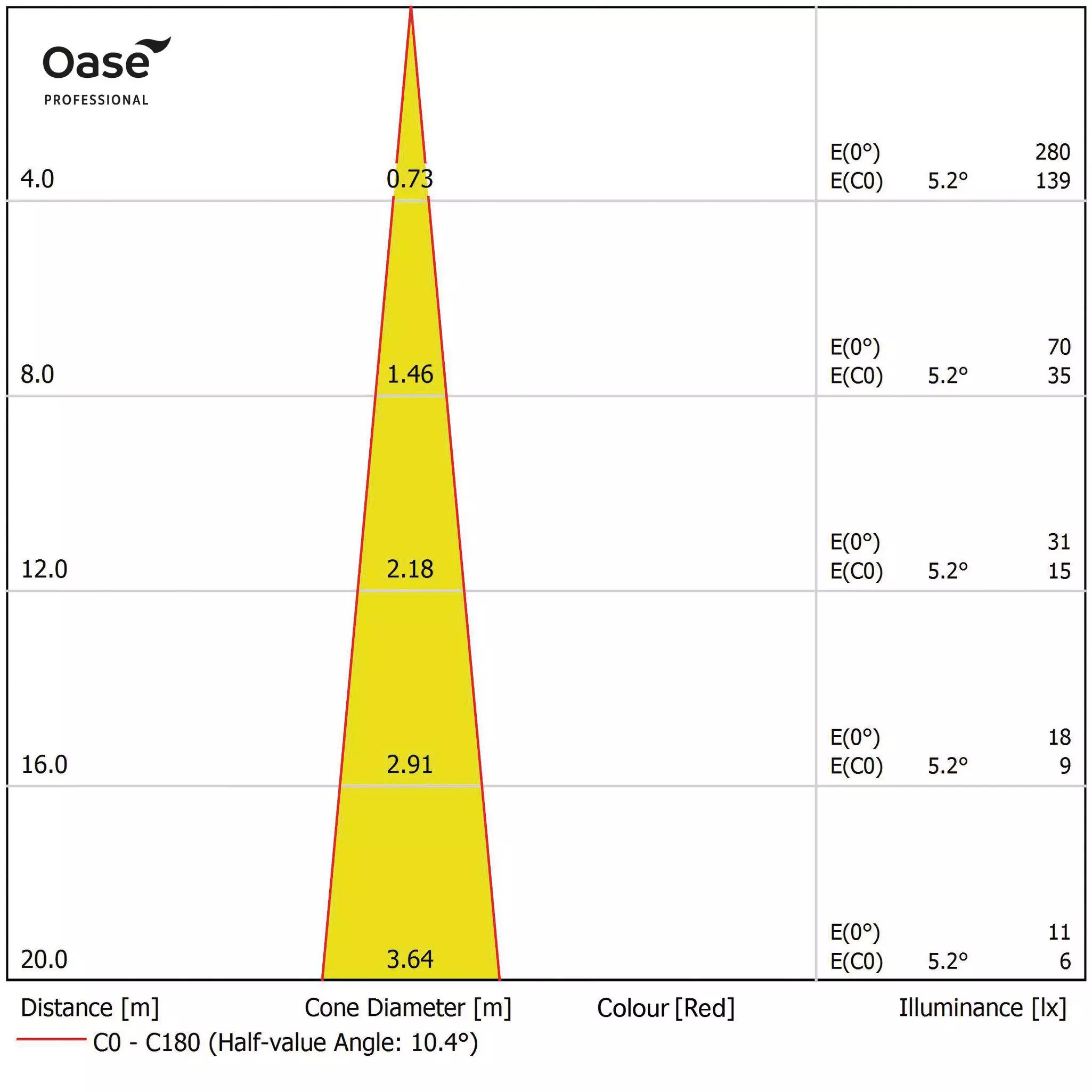

- Beam angle
- 11 Degrees (± 2)
- Stroboscope effect
- 0-25 Hz
- Weighted energy consumption
- 24
- kWh/1000h
- Rated voltage
- 24 V / DC
- Power consumption
- 21
- W
- Rated current
- 0.95
- A
- Dim frequency
- 2800
- Hz
- Power connection type
- Hybrid plug
- Power cable length
- 1.00
- m
- Protection class
- IP68; 4 m

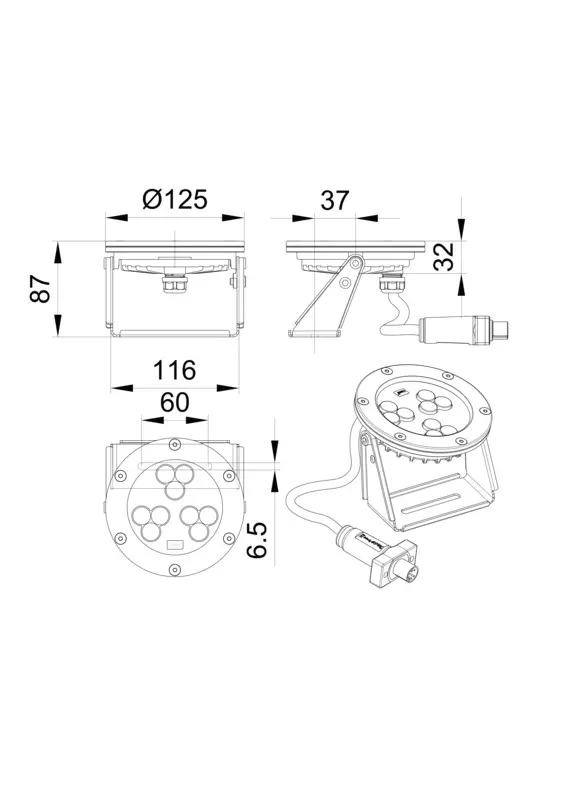

- Dimensions (Ø × H)
- 125 × 87
- mm
- Material
- Stainless steel 1.4404 (AISI 316L)
- Net weight
- 1.4
- kg
Downloads
- 3D drawing
- 2D drawing
- 2D drawing
- Eulumdat-files
- Product data sheet
- Bill of quantity
- Product instructions
