ProfiRing LED L RGBW Spot /DMX/02 INT
SKU: 91291
View other products in the family
The ProfiRing LED L RGBW Spot /DMX/02 is the powerful, robust RGBW-LED ring light with a hole D = 22mm and a beam angle of 16°, 1228 lumens.

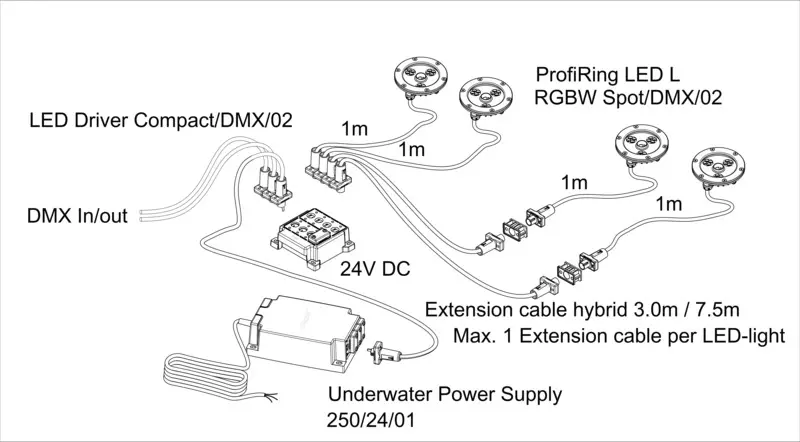

The coloured LED light comes with high quality, robust stainless steel housing for fresh water, pool water and sea water. The flat surface prevents deposition of dirt. These LED lights have a temperature regulation so that wet and dry installation is possible. The temperature controlled high-class brand LED has a lifetime up to 100,000 hours.* The brightness of the basic colors of the LED RGBW lights are measuredindividually. The Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.
The coloured LED light comes with high quality, robust stainless steel housing for fresh water, pool water and sea water. The flat surface prevents deposition of dirt. These LED lights have a temperature regulation so that wet and dry installation is possible. The temperature controlled high-class brand LED has a lifetime up to 100,000 hours.* The brightness of the basic colors of the LED RGBW lights are measuredindividually. The Underwater LED Driver Compact /DMX/02 ensures equal brightness for all lights in the system, thereby creating a homogeneous colour combination.
Feature Details
Slide 1 of 2
1 of 2
Slide 1 of 2
1 of 2
Specifications
Specification breakdown
- Certificate
- Dekra US
- Number of DMX channels
- 6
- Units
- DMX Channel 1
- red
- DMX Channel 2
- green
- DMX Channel 3
- blue
- DMX Channel 4
- strobe
- DMX Channel 5
- dimmable
- Luminous flux with all on
- 1228
- lm
- Luminous flux red
- 240
- lm
- Luminous flux green
- 460
- lm
- Luminous flux blue
- 137
- lm
- Luminous flux withe
- 391
- lm
- Colour temperature LED white
- 4000 (± 200)
- K
- Beam angle
- 16 Degrees (± 2)
- Stroboscope effect
- 0-25 Hz
- Weighted energy consumption
- 24
- kWh/1000h
- Rated voltage
- 24 V / DC
- Power consumption
- 28
- W
- Rated current
- 1.27
- A
- Dim frequency
- 2800
- Hz
- Power connection type
- Hybrid plug
- Power cable length
- 1.00
- m
- Protection class
- IP68; 4 m

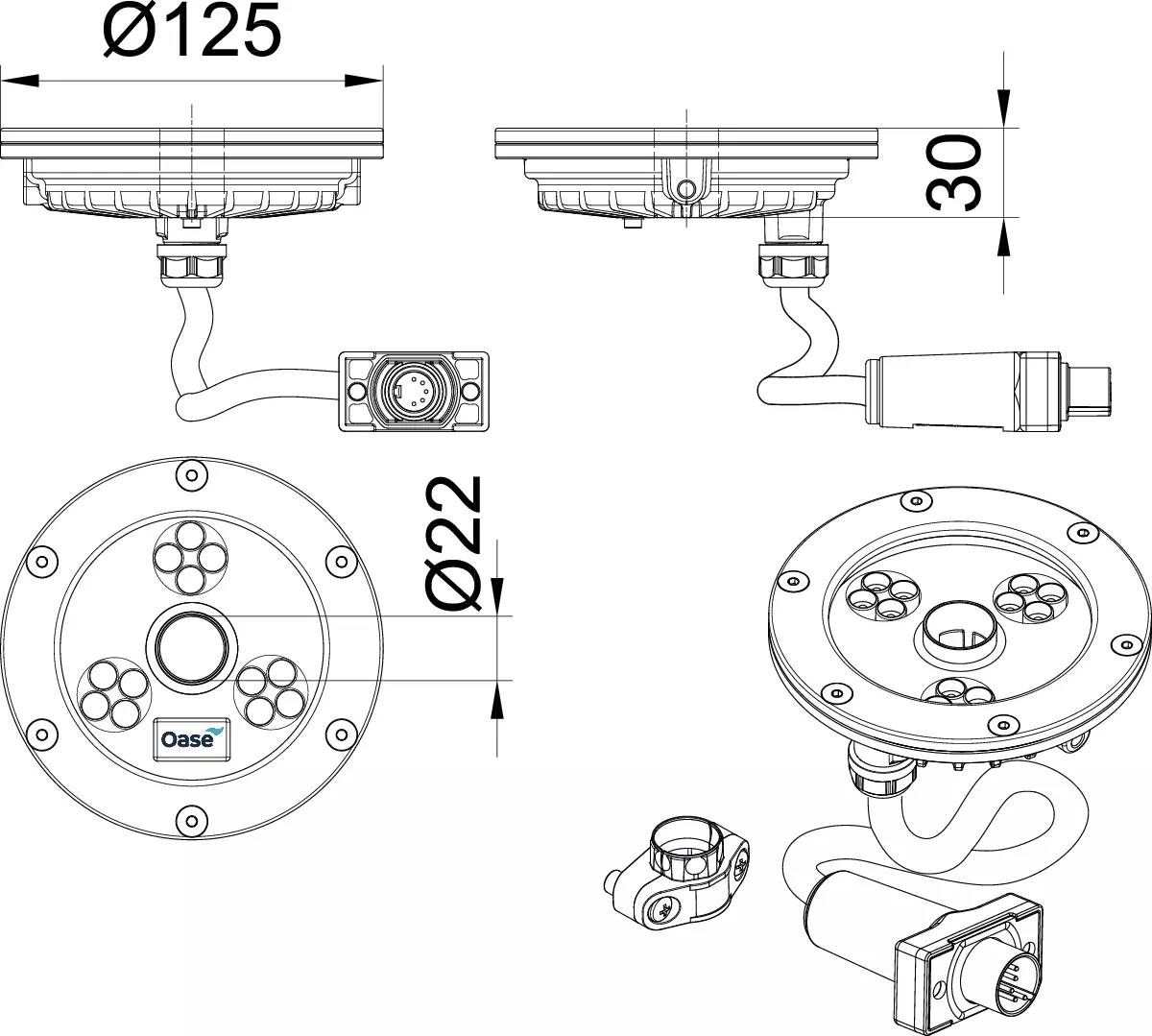

- Dimensions (Ø × H)
- 125 × 30
- mm
- Material
- Stainless steel 1.4404 (AISI 316L)
- Net weight
- 1.2
- kg
Downloads
- 3D drawing
- 2D drawing
- 2D drawing
- 2D drawing
- Product instructions
- Product data sheet
